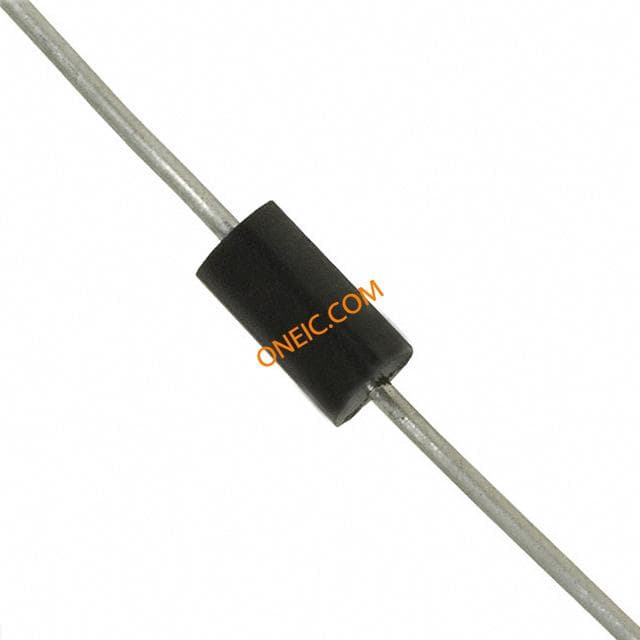

P6KE39CA
| Manufacturer | |
| Description | Diode TVS Single Bi-Dir 33V 600W 2-Pin DO-15 T/R TRANSIL BI 0,6KW 39V DO15 TVS DIODE 33.3VWM 69.7VC DO15 TVS Diode Bi-Directional P6KE39CA 69.7V, 600W, DO-15 2-Pin TVS Diodes - Transient Voltage Suppressors 600W 39V Bidirect DIODE, TVS, 39V, 600W P6KE39CA STMicroelectronics 双向 TVS 二极管, 600W, 69.7V, 2针 DO-15封装 ESD Suppressors / TVS Diodes 600W 39V Bidirect TVS-DIODE BI 0,6KW 39V DO15 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Unit Pack | 1000 |
| Other Names | 497-11390-1 | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | Ammo Pack | Factory Pack Quantity | 1000 |
| Standard Package Name | DO-204-AC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85363010 |
| Automotive | NO | Rad Hardened | No |
| ESD Protection | No | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 1 Channel | Tolerance | 5% |
| Capacitance | 900 pF | TVS Polarity | :Bidirectional |
| Current - Surge | 1 mA | Current - Output | 1 mA |
| Voltage - Supply | 33.3V | Current - Leakage | 0.5 uA |
| Number of Elements | 1 | Power - Peak Pulse | 600 W |
| Voltage - Clamping | 69.7 V | Capacitance @ Vr, F | :900pF |
| Current - Trip (It) | 1 mA | Diode Configuration | :DO-15 |
| Voltage - Breakdown | 37.1 V | Voltage - Breakover | :37.1V |
| Voltage - Isolation | :33.3V | Contact Voltage (Max) | 33.3V |
| Power Line Protection | No | Voltage - Input (Min) | 33 V |
| Bidirectional Channels | 1 | Voltage - Supply (Min) | 33.3 V |
| Capacitance @ Frequency | 450pF @ 1MHz | Power Dissipation (Max) | 0.6kW |
| Current - Peak Pulse (8/20us) | 57 A | Current - Reverse Leakage @ Vr | 500 uA |
| Current - Peak Pulse (10/1000us) | 57A (8/20µs) | Voltage - Reverse Standoff (Typ) | 33 V |
Mechanical
| Length | :7.62mm | Weight | 0.002 |
| Packaging | Tape and Reel | Lead Style | Through Hole |
| Mounting Type | Through Hole | Number of Pins | :2 |
| Package / Case | 2DO-15 | Package Cooled | DO-15 |
| Material Finish | :- | Package Quantity | DO-15 |
| Size / Dimension | 0.139 in Dia. x 3.53 (Max) mm W x 0.266 in L x 3.53 (Max) mm H | Termination Style | Axial |
| Diameter - Outside | :3.56mm | Number of Positions | 2 |
| Supplier Device Package | DO-15 | ||
Product Info
| Type | Zener | Series | P6KE |
| Polarity | Bidirectional | Matchcode | P6KE39CA |
| Diode Type | :Bidirectional TVS | Applications | General Purpose |
| Configuration | Single | Port Direction | Bi-Directional |
| Standard Leadtime | 16 weeks | Application Specifics | BIDIRECTIO |
Environmental
| Operating Temperature | -65 to 175 °C | Operating Temperature - Junction | 175 |
