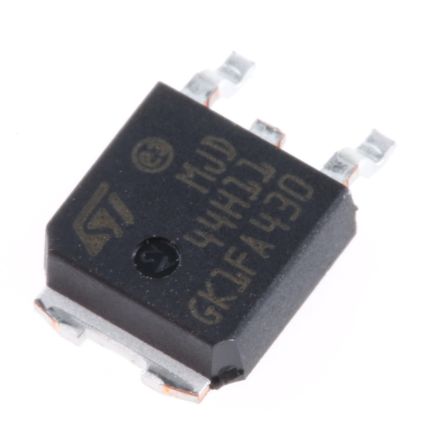

MJD44H11T4
| Manufacturer | |
| Description | Trans GP BJT NPN 80V 8A 3-Pin(2+Tab) DPAK T/R NPN TRANSISTOR 80V 8A 20W DPAK TRANSISTOR NPN 80V 8A DPAK MJD44H11T4, NPN Bipolar Transistor, 8A 80V HFE:40V Power, 3-Pin D-PAK Transistors Bipolar - BJT NPN Gen Pur Switch TRANSISTORNPN80V8A,DPAK STMicroelectronics , NPN 晶体管, 8 A, Vce=80 V, HFE:40, 3针 DPAK封装 Bipolar Transistors - BJT NPN Gen Pur Switch |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2500 | Unit Pack | 2500 |
| Other Names | 497-2504-2 | Standard Pack | 2,500 |
| Product Category | Transistors Bipolar - BJT | Standard Package | Cut Tape |
| Factory Pack Quantity | 2500 | Standard Package Name | DPAK |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85412900 |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Power - Max | 20W | Power - Rated | 20 W |
| Transistor Type | NPN | Voltage - Supply | 80V |
| Number of Elements | 1 | Resistance @ 25degC | 6.25°C/W |
| Vce Saturation (Max) | 1 V | Voltage - Input (Min) | 80 V |
| Voltage - Supply (Max) | 5 V | Power Dissipation (Max) | 20000 mW |
| Vce(on) (Max) @ Vge, Ic | 80V | Power (Watts) - Per Port | 20W |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 400mA, 8A | Current - Collector (Ic) (Max) | 8A |
| Current - Collector Cutoff (Max) | 8 A | DC Current Gain (hFE) (Min) @ Ic, Vce | 60@2A@1V|40@4A@1V |
| Voltage - Collector Emitter Breakdown (Max) | 5 V | ||
Mechanical
| Width | 6.2mm | Height | 2.4mm |
| Length | 6.6mm | Weight | 0.00195 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :3 |
| Package / Case | 3DPAK | Package Cooled | DPAK |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | DPAK |
| Primary Material | Si | Size / Dimension | 2.4 x 6.6 x 6.2mm |
| Number of Positions | 3 | Supplier Device Package | D-Pak |
Product Info
| Type | NPN | Polarity | NPN |
| Matchcode | MJD44H11T4 | Card Standard | Bipolar Power |
| Configuration | Single | Standard Leadtime | 12 weeks |
Environmental
| Operating Temperature | -55 to 150 °C | ||
