点击放大查看

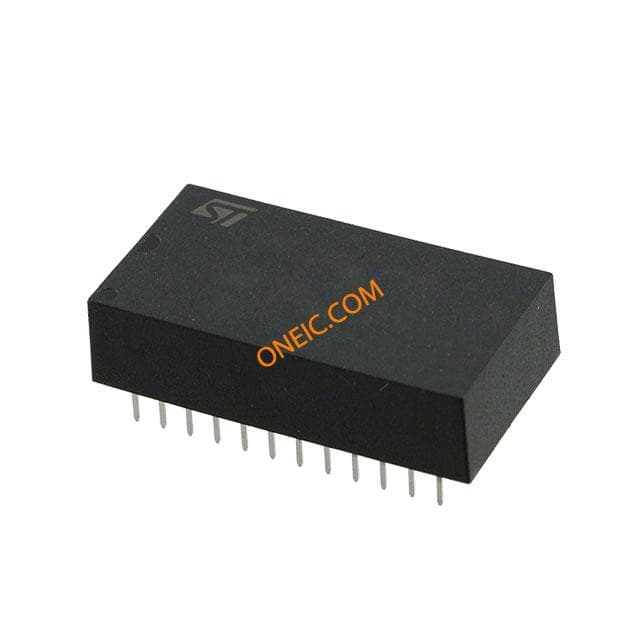

M48Z12-150PC1
| Manufacturer | |
| Description | NVRAM NVSRAM Parallel 16K-Bit 5V 24-Pin PCDIP Tube IC NVSRAM 16KBIT 150NS 24DIP NVRAM 16K (2Kx8) 150ns IC, SRAM, 16KB, 5V , 16kbit NVRAM 存储器, 4.5 → 5.5 V, 0 → +70 °C, 24针 PCDIP封装 |
| Category |
Business
| Product Category | NVRAM | Standard Package | Rail / Tube |
| Factory Pack Quantity | 14 | Standard Package Name | CDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423245 |
| Rad Hardened | No | ||
Electrical
| Speed | 150ns | Memory | :2K x 8bit |
| Interface | Parallel | Access Time | 150 ns |
| Memory Size | 16K (2K x 8) | Memory Type | NVSRAM (Non-Volatile SRAM) |
| Voltage - VCCB | :5V | Voltage Rating | 4.5 |
| Current - Output | 80 mA | Voltage - Supply | 5 V |
| Current Rating (Max) | 80 | Voltage - Supply (Min) | 4.5 V |
| Current - Average Rectified (Io) | 80 mA | Common Mode Transient Immunity (Min) | Commercial |
Mechanical
| Width | 18.34(Max) | Weight | 0.003333 |
| Packaging | Tube | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :24 | Package / Case | 24PCDIP |
| Package Cooled | PCDIP | Material Finish | :- |
| Length - Overall | 34.8(Max) | Package Quantity | PCDIP |
| Number of Positions | 24 | Shell Size - Insert | 8.89(Max) |
| Supplier Device Package | 24-PCDIP, CAPHAT® | Number of Cores/Bus Width | 8 Bit |
Product Info
| Type | NVSRAM | DELETED | Compliant |
| Density | 16 Kb | Features | :Internal Battery |
| Base Unit | :48 | Manufacturer | 2Kx8 |
| Memory Format | RAM | Bus Connection | Parallel |
| Printed Circuit Board | 24 | ||
Environmental
| Operating Temperature | 0 to 70 °C | ||
