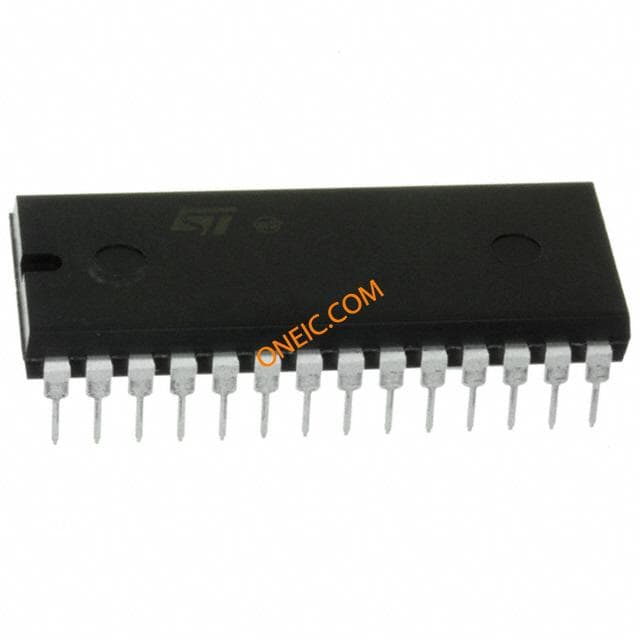

M48T35AV-10PC1
| Manufacturer | |
| Description | NVRAM NVSRAM Parallel 256K-Bit 3.3V 28-Pin PCDIP Tube Real Time Clock Parallel 256Byte 28-Pin PCDIP Tube TK 32K X 83.3V IC TIMEKPR NVRAM 256KBIT 3V 28DI M48T35AV-10PC1, NVRAM Memory 256kbit Through Hole, 3 to 3.6V, 0 to +70°C, 28-Pin, PCDIP NVRAM 256K (32Kx8) 100ns NVRAM, TIMEKEEPER, 3V, 256K, CAPHAT M48Z35AV-10MH1E IC RTC CLK/CALENDAR PAR 28-DI , 256kbit NVRAM 存储器, 3 → 3.6 V, 0 → +70 °C, 28针 PCDIP封装 |
| Category |
Business
| MOQ | 60 | Unit Pack | 12 |
| Product Category | NVRAM | Standard Package | Rail / Tube |
| Factory Pack Quantity | 12 | Standard Package Name | CDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423245 |
| Rad Hardened | No | ||
Electrical
| Memory | :32K x 8bit | RAM Size | 256 B |
| Interface | Parallel | Access Time | 100ns |
| Memory Size | 256kbit | Memory Type | :NVRAM |
| Voltage - VCCB | :3.3V | Voltage Rating | 3 V |
| Current - Output | 30 mA | Voltage - Supply | 3.3 V |
| Voltage - Supply (Min) | 3.6 V | Current - Average Rectified (Io) | 30 mA |
Mechanical
| Width | 18.34mm | Height | 8.89mm |
| Length | 39.88mm | Weight | 0.006669 |
| Packaging | Tube | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :28 | Package / Case | 28PCDIP |
| Package Cooled | PCDIP | Material Finish | :- |
| Length - Overall | 39.88(Max) | Package Quantity | PCDIP |
| Size / Dimension | 39.98 x 18.34 x 8.89mm | Number of Positions | 28 |
| Shell Size - Insert | 8.89(Max) | Supplier Device Package | 28-PCDIP, CAPHAT® |
| Number of Cores/Bus Width | 8 Bit | ||
Product Info
| Type | NVSRAM | DELETED | Compliant |
| Density | 256 Kb | Features | Leap Year |
| Base Unit | :48 | Date Format | DW:DM:M:Y |
| Time Format | HH:MM:SS | Manufacturer | 32Kx8 |
| Memory Format | 8 b | Bus Connection | Parallel |
| Printed Circuit Board | 28 | ||
Environmental
| Operating Temperature | 0 to 70 °C | Operating Temperature - Junction | 70C |
