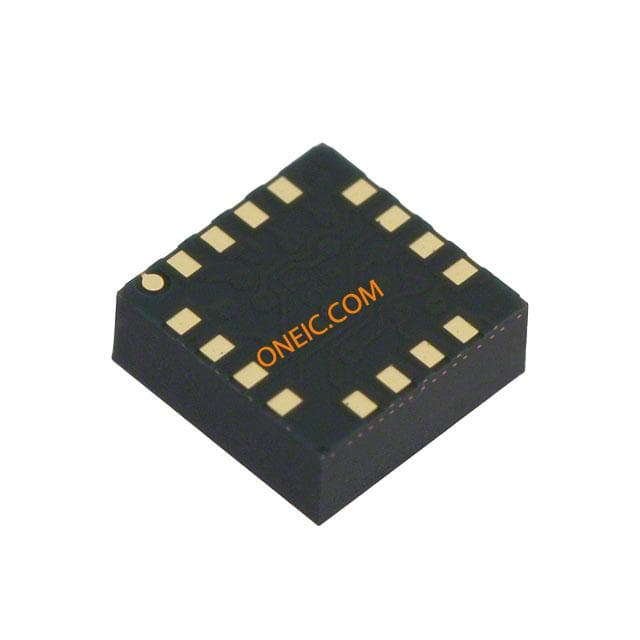

LIS331HH
| Manufacturer | |
| Description | Accelerometer Triple ±6g/±12g/±24g 2.5V/3.3V 16-Pin LGA Tray ACCEL 3-Axis Digital IC ACCELEROMETER 3 AXIS 16LGA LIS331HH, Accelerometer, 3-Axis, 2.16 to 3.6V, 16-Pin LGA Accelerometers MEMS Digital Sensor 3-axes Nano Accelerometer Triple �6g/�12g/�24g 2.5V/3.3V 16-Pin LGA Tray ACCELEROMETER, MEMS, 3AXIS, 16LLGA Acceleration sensor LGA-16 (3x3), LIS331HH, ST , 3轴 加速表, 2.16 → 3.6 V, 16针 LGA封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Unit Pack | 490 |
| Other Names | 497-10134 | Product Category | Accelerometers |
| Standard Package | Trays | Standard Package Name | LGA |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Output | :Digital | Icc Max | 1000µA |
| Interface | Digital | Resolution | 12bits |
| Output Type | Digital | Range deg/s | 6, 12, 24+-g |
| Sensitivity | 12mg/LSB | Sensor Type | :LLGA |
| Rds On (Typ) | 24ms | Sensing Angle | X, Y, Z |
| Number of Bits | 16 bit | Voltage Rating | 2.16 |
| Current - Output | 10 uA | Voltage - Supply | 2.16 to 3.6 V |
| Digital I/O Lines | I2C, SPI | Voltage - Input (Min) | 2.16V |
| Voltage - Supply (Min) | +-70+-mg | Common Mode Transient Immunity (Min) | Extended |
Mechanical
| Axis | Triple | Depth | 3 mm |
| Height | 1 mm | Weight | 0.0002 |
| Bandwidth | 12kHz | Footprint | 9mm² |
| Packaging | Tray | Acceleration | ±6/±12/±24 g |
| Mounting Type | Surface Mount | Number of Pins | :16 |
| Package / Case | 16LGA | Package Cooled | LGA |
| Material Finish | :MSL 3 - 168 hours | Top Termination | 85°C |
| Length - Overall | 3 mm | Package Quantity | LGA |
| Number of Positions | 16 | Minimum Working Height | -40°C |
| Supplier Device Package | 16-LGA (3x3) | ||
Product Info
| Density | 650µg/rtHz | Matchcode | LIS331HH |
| Technology | MEMS | Number of Axes | 3 |
| Measurement Type | :X, Y, Z | Standard Leadtime | 30 weeks |
Environmental
| Acceleration Range | ±6g, 12g, 24g | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
