EVAL6226QR
| Manufacturer | |
| Description | Demonstration Board Using A Dual Full-Bridge L6226Q For Motor Control Applications Power Management IC Development Tools Dual Full-Bridge L6226Q Demo BRD EvalBoard L6226Q 2xH-Br _NO ROHS EVAL BOARD FOR L6226Q INDUSTRIAL |
| Category |
Business
| MOQ | 1 | Product | Power Management Modules |
| Unit Pack | 1 | Other Names | 497-6816 |
| Product Category | Power Management IC Development Tools | Standard Package | Boxed |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85423990 |
| Automotive | NO | Leadfree Defin | Leaded |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Package / Case | EvalBoard | Size / Dimension | 27 mm x 24.5 mm |
Product Info
| Type | Development Kit | Contents | Board |
| Embedded | No | Matchcode | EVALL6226QR |
| Main Purpose | Power Management, Motor Control | Standard Leadtime | 12 weeks |
| Tool Type Feature | L6226Q | Primary Attributes | Stepper, Bi-Polar/2-Phase, 1A DC, 8 ~ 52V Output |
| Utilized IC / Part | L6226Q | Secondary Attributes | Thermal Protection, Internal Free Wheeling Diodes |
| Application Specifics | EvalBoard | ||
Documents & Media
Similar Parts
L6226N
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 24-Pin Power PDIP Tube 2xH-Br 1.4A 52V DIP-24 THT IC MOTOR DRIVER PAR 24POWERDIP L6226N, Full Bridge Motor Driver, DMOS Dual Full Bridge Driver, 8 to 52V, 24-Pin Power PDIP Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge DMOSDualFullBridgeDriver STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 8 → 52 V
L6226DTR
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 24-Pin SO T/R DUAL FULL BRIDG IC MOTOR DRIVER PAR 24SOIC Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge L6226 Series Dual Full Bridge 52 V 2.8 A 0.73 Ohm DMOS Driver - SOIC-24

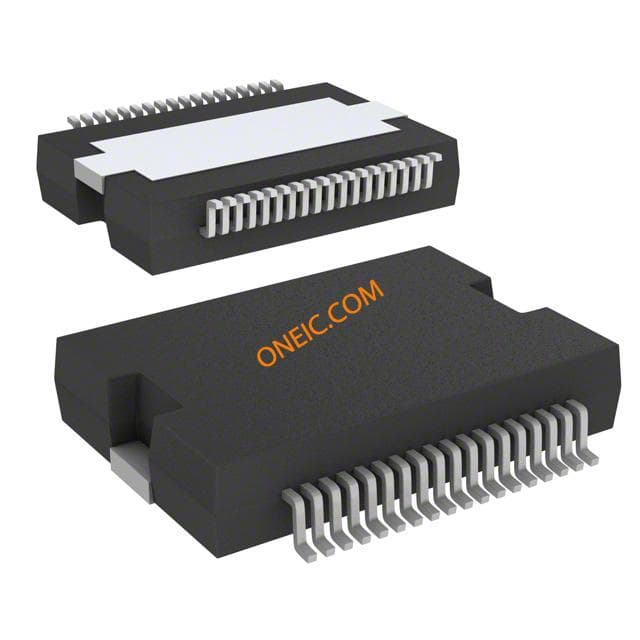

L6226PD
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 36-Pin PowerSO Tube 2xH-Br 1.4A 52V PowerSO-36 SMD IC MOTOR DRIVER PAR 36POWERSO L6226PD, Full Bridge Motor Driver, DMOS Dual Full Bridge Driver, 8 to 52V, 36, 38-Pin PowerSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR CNTRL, DUAL, DMOS, 2.8A, 36PWRSO L6226PD STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 8 → 52 V
L6226PDTR
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 36-Pin PowerSO T/R DUAL FULL BRIDG IC MOTOR DRIVER PAR 36POWERSO Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge STMicroelectronics 电机驱动器 IC L6226PD, 用于有刷直流电机, 1.4A, 100kHz, 8 → 52 V 2xH-Br 1.4A 52V PowerSO-36 SMD
L6226D
stmicroelectronics
DMOS Dual Full Bridge Driver 48V 24-Pin SO Tube 2xH-Br 1.4A 52V SO-24 SMD IC MOTOR DRIVER PAR 24SOIC L6226D, Full Bridge Motor Driver, DMOS Dual Full Bridge Driver, 8 to 52V, 24-Pin SOIC Motor / Motion / Ignition Controllers & Drivers Dual Full Bridge MOTOR CNTRL, DUAL, DMOS, 2.8A, 24SOIC L6226D STMicroelectronics 电机驱动器 IC , 用于有刷直流电机, 1.4A, 8 → 52 V
L6226QTR
stmicroelectronics
MOSFET DRVR 2.8A 4-OUT Hi/Lo Side Full Brdg 32-Pin VFQFPN T/R Power Driver ICs DMOS Full Bridge Driver 2xH-Br 1.4A 52V QFN5x5 SMD IC MOTOR DRIVER PAR 32VFQFPN Gate Drivers DMOS Full Bridge Driver

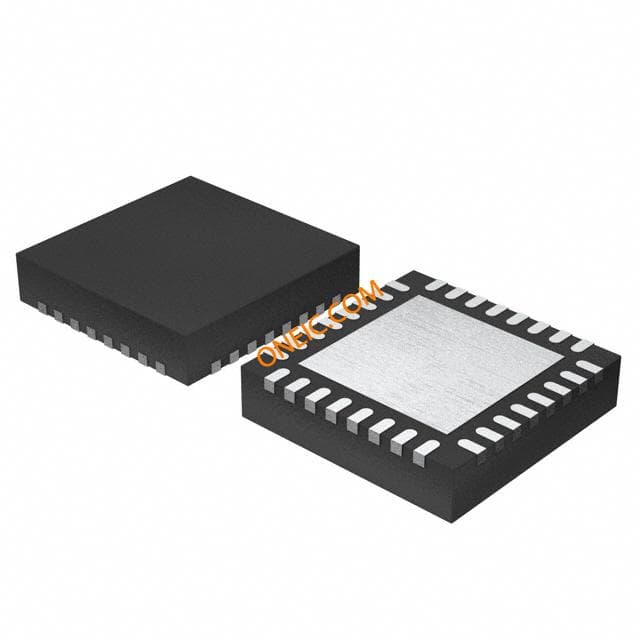

L6226Q
