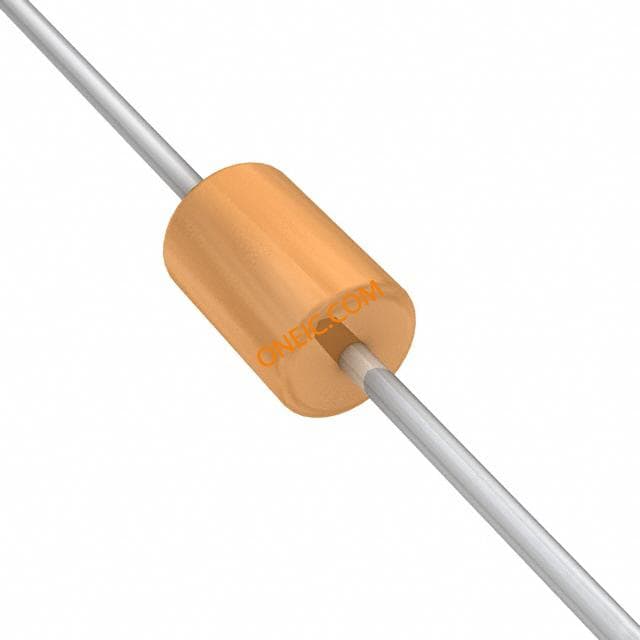

BAT46
| Manufacturer | |
| Description | Diode Small Signal Schottky 100V 0.15A 2-Pin DO-35 SCHOTTKY-DIODE 100V 0,15A DO35 DIODE SCHOTTKY 100V 0.15A DO35 BAT46, Schottky Diode, 0.15A 100V, 2-Pin, DO-35 Schottky Diodes & Rectifiers 150mA 100 Volt DIODE, SCHOTTKY, SMALL SIGNAL BAT46 Schottky diode 150 mA 100 V DO-35, BAT46, ST STMicroelectronics 肖特基 二极管, 150mA 100V, 2针 DO-35封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1 | Product | Schottky Diodes |
| Unit Pack | 4000 | Other Names | 497-3768-2 |
| Product Category | Schottky Diodes & Rectifiers | Standard Package | Cut Tape |
| Factory Pack Quantity | 4000 | Standard Package Name | DO-204-AH |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Speed | Small Signal = | U(RRM) | 100V |
| Unit (F) | 0.45V | Current - Test | 5@75V uA |
| Rectifier Type | Schottky Diode | Current - Surge | :750mA |
| Voltage - Supply | 1@0.25A V | Current - Output 1 | :10mA |
| Capacitance @ Vr, F | 10pF @ 0V, 1MHz | Diode Configuration | :Single |
| LED Forward Voltage | 1 | Voltage - Input (Min) | 450mV @ 10mA |
| Current - Output (Typ) | 0.15A | Power Dissipation (Max) | 150 |
| Voltage Regulation - Load | 100 V | Current - Peak Pulse (8/20us) | 0.75 A |
| Current - Reverse Leakage @ Vr | 5 uA at 75 V | Voltage - DC Reverse (Vr) (Max) | 100V |
| Current - Average Rectified (Io) | 0.15 A | Current - Peak Pulse (10/1000us) | 0.00075kA |
| Voltage - Reverse Standoff (Typ) | 100 V | Current - LED Trigger (Ift) (Max) | :150mA |
| Current - Continuous Drain (Id) @ 25degC | 0.15A | ||
Mechanical
| Width | 2mm | Height | 2mm |
| Length | 4.5mm | Weight | 0.000137 |
| Packaging | Tape & Reel (TR) | Lead Style | Through Hole |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Number of Pins | :2 | Package / Case | 2DO-35 |
| Package Cooled | DO-35 | Length - Overall | 4.5(Max) |
| Package Quantity | DO-35 | Size / Dimension | 2 x 4.5 x 2mm |
| Diameter - Outside | :1.85mm | Number of Positions | 2 |
| Supplier Device Package | DO-35 | ||
Product Info
| Type | Small Signal Schottky Diode | DELETED | Compliant |
| Matchcode | BAT46 | Diode Type | Schottky |
| Configuration | Single | Standard Leadtime | 18 weeks |
| Utilized IC / Part | :BAT46 | Printed Circuit Board | 2 |
Environmental
| Thermal Resistance | 300°C/W Ja | Operating Temperature | -65 to 125 °C |
| Operating Temperature - Junction | 125°C | ||
