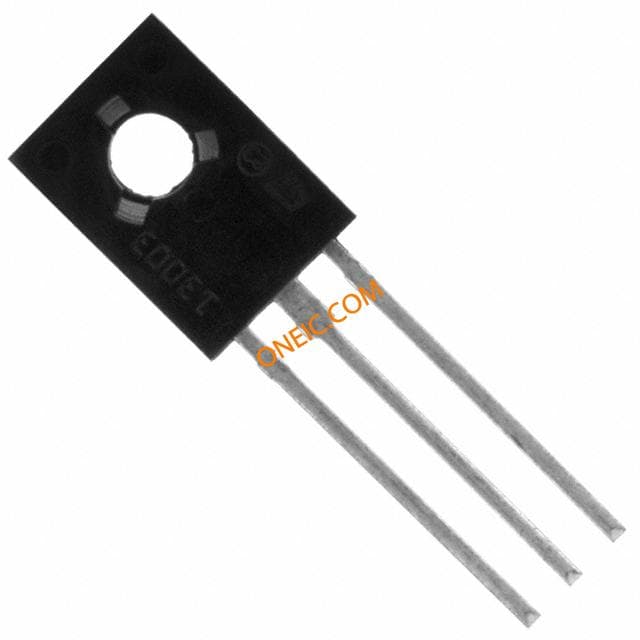

2N5195
| Manufacturer | |
| Description | Trans GP BJT PNP 80V 4A 3-Pin(3+Tab) SOT-32 Tube PNP TRANS 80V 1 TRANSISTOR PNP -80V -4A SOT-32 Transistors Bipolar - BJT PNP Power Switching BIPOLAR TRANSISTOR, PNP, -80V TRANSISTOR PNP 80V 4A SOT-32 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 2000 | Unit Pack | 50 |
| Other Names | 497-2585-5 | Product Category | Transistors Bipolar - BJT |
| Standard Package | Rail / Tube | Factory Pack Quantity | 2000 |
| Standard Package Name | TO-126 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85412100 |
| Rad Hardened | No | ||
Electrical
| Frequency | 2 MHz | Power - Max | 40W |
| Power - Rated | 40 W | Frequency - Max | 2(Min) MHz |
| Transistor Type | PNP | Voltage - Supply | 80V |
| Number of Elements | 1 | Vce Saturation (Max) | - 1.2 V |
| Voltage - Input (Min) | 80 V | Frequency - Transition | 2MHz |
| Gain Bandwidth Product | 2 MHz | Voltage - Supply (Max) | 5 |
| Power Dissipation (Max) | 40000 mW | Vce(on) (Max) @ Vge, Ic | - 80 V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 1A, 4A | Current - Collector (Ic) (Max) | 4A |
| Current - Collector Cutoff (Max) | 4 A | DC Current Gain (hFE) (Min) @ Ic, Vce | 20@1.5A@2V|7@4A@2V |
| Voltage - Collector Emitter Breakdown (Max) | 5 V | ||
Mechanical
| Width | 2.7(Max) | Weight | 0.00068 |
| Packaging | Tube | Tab Width | Tab |
| Lead Style | Through Hole | Termination | :Through Hole |
| Mounting Type | Through Hole | Mounting Style | SMD/SMT |
| Number of Pins | :3 | Package / Case | 3SOT-32 |
| Package Cooled | SOT-32 | Material Finish | :- |
| Length - Overall | 7.8(Max) | Package Quantity | SOT-32 |
| Number of Positions | 3 | Shell Size - Insert | 10.8(Max) |
| Supplier Device Package | SOT-32-3 | ||
Product Info
| Type | PNP | DELETED | Compliant |
| Configuration | Single | Printed Circuit Board | 3 |
Environmental
| Operating Temperature | -65 to 150 °C | ||
