点击放大查看

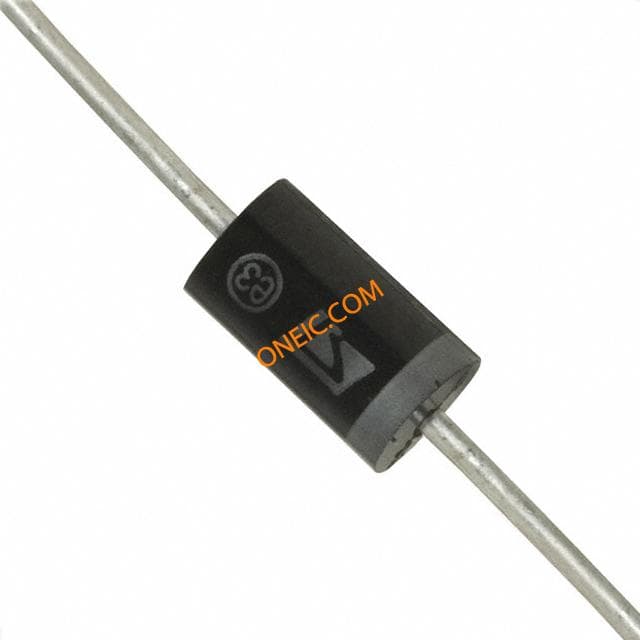

1.5KE30CA
| Manufacturer | |
| Description | Diode TVS Single Bi-Dir 25.6V 1.5KW 2-Pin DO-201 T/R TRANSIL BI 1,5KW 30V DO201 TVS DIODE 25.6VWM 53.5VC DO201 TVS Diode Bi-Directional 1.5KE30CA 53.5V, 1500W, DO-201 2-Pin TVS Diodes - Transient Voltage Suppressors 1500W 30V Bidirect Diode TVS Single Bi-Dir 25.6V 1.5KW 2-Pin DO-201 DIODE, TVS, 30V, 1.5KW Diode: transil; 1.5kW; 30V; 36A; bidirectional; DO201 TVS diode, 25.6 V 1500 W DO-201, 1.5KE30CA, ST STMicroelectronics 双向 TVS 二极管, 1500W, 53.5V, 2针 DO-201封装 TVS-DIODE BI 1,5KW 30V DO201 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 4800 | Unit Pack | 600 |
| Other Names | 497-11378-1 | Product Category | TVS Diodes - Transient Voltage Suppressors |
| Standard Package | Ammo Pack | Factory Pack Quantity | 600 |
| Standard Package Name | DO-201 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85363010 |
| Automotive | NO | Rad Hardened | No |
| ESD Protection | No | Leadfree Defin | RoHS-conform |
Electrical
| Channels | 1 Channel | Tolerance | 5% |
| Capacitance | 2900 pF | TVS Polarity | :Bidirectional |
| Power - Rated | 1.5kW | Current - Surge | 1 mA |
| Current - Output | 1 mA | Voltage - Supply | 25.6V |
| Current - Leakage | 0.001 uA | Number of Elements | 1 |
| Power - Peak Pulse | 1500 W | Voltage - Clamping | 53.5 V |
| Capacitance @ Vr, F | :2900pF | Current - Trip (It) | 1 mA |
| Diode Configuration | :CB-429 | Voltage - Breakdown | 28.5 V |
| Voltage - Breakover | :28.5V | Voltage - Isolation | :25.6V |
| Voltage - Off State | 25.6V | Current Rating (Max) | :1µA |
| Contact Voltage (Max) | 25.6V | Power Line Protection | No |
| Voltage - Input (Min) | 25.6 V | Bidirectional Channels | 1 |
| Voltage - Supply (Min) | 25.6 V | Capacitance @ Frequency | 1450pF @ 1MHz |
| Power Dissipation (Max) | 1.5kW | Current - Peak Pulse (8/20us) | 187 A |
| Current - Reverse Leakage @ Vr | 1 uA | Current - Peak Pulse (10/1000us) | 187A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 25.6 V | Current - Non Rep. Surge 50, 60Hz (Itsm) | :200A |
Mechanical
| Length | :7.62mm | Weight | 0.002 |
| Packaging | Tape and Reel | Lead Style | Through Hole |
| Pin Diameter | :1.06mm | Mounting Type | Through Hole |
| Number of Pins | :2 | Package / Case | 2DO-201 |
| Package Cooled | DO-201 | Material Finish | :- |
| Package Quantity | DO-201 | Size / Dimension | 0.189 in Dia. x 5.3 (Max) mm W x 0.374 in L x 5.3 (Max) mm H |
| Termination Style | Axial | Diameter - Outside | :5.3mm |
| Number of Positions | 2 | Supplier Device Package | DO-201 |
Product Info
| Spg | 1250 | Type | Zener |
| Series | 1.5KE | Polarity | Bidirectional |
| Matchcode | 1.5KE30CA | Structure | bidirectional |
| Diode Type | :Bidirectional TVS | Applications | General Purpose |
| Configuration | Single | Number of Jaws | :1N6282CA |
| Port Direction | Bi-Directional | Number of Units | 1 |
| Measurement Type | :1mA | Standard Leadtime | 16 weeks |
| Application Specifics | BIDIRECTIO | ||
Environmental
| Operating Temperature | -65 to 175 °C | Operating Temperature - Junction | 175 |
