UTS71419S
| Manufacturer | |
| Description | Standard Circular Connector 19P Sckt Receptacle Jam Nut Size 14 CONN RCPT 19X1.0 FEMALE JAM NUT 19 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts connector,plasticcirc,size14,jamnutrecept,for19size20socketcont,sealed Panel Mount Sockets UTS Trim Trio UTS 19P Female 14, UTS71419S, Souriau Souriau 19路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1286 |
| Product Category | Standard Circular Connector | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Frequency | 30.2 | Capacitance | 3.2 |
| Voltage Rating | 125 V ac | Number of Poles | 19 |
| Current Rating (Max) | 5 A | Voltage - Protection Level (VP) (2416) | IP 68/69 K |
Mechanical
| Outline | 14 | Packaging | Bulk |
| Body Color | 33.9 | Shell Size | 14 |
| Orientation | Keyed | Shell Style | Jam Nut |
| Termination | Crimp | Weight (g): | 25.7 |
| Contact Size | 20 | Contact Type | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Front Side Nut | Connector Type | Receptacle for Female Contacts |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Shell Material | Thermoplastic | Insertion Angle | 14-19 |
| Locking Feature | Bayonet locking | Contact Material | CuNi+Au |
| Housing Material | Plastic | Termination Rows | 压接 |
| Termination Style | Crimp Connection | 1st Contact Gender | Female |
| Diameter - Outside | 34.9 | Number of Contacts | 19 |
| Number of Positions | 19 | Shell Size - Insert | 14-19 |
| 1st Connector Gender | Female | Shell Material, Finish | Thermoplastic |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | UTS | Features | Cap (Cover), Dust |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
| Amplifier Type | 19.3 | ||
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | +105°C |
Documents & Media
Similar Parts
RC20W3K
Souriau
Standard Circular Contacts Crimp Socket Contact 20-22 AWG CONTACT SKT CRIMP 20-22AWG GOLD UT0W Series Size 20 7.5A Female Circular Connector Contact, Crimp,Wire size 22 to 20AWG CONTACT SOCKET, UT0W, 22-20AWG SOCKETCONTACTSSIZE20-0.35-0.5MM2 Female contact 0.35...0.5 mm² Female, RC20W3K, Souriau Souriau UT0W 系列 7.5A 母 压接端接 圆形 连接器 触芯, 使用于UT0W 圆形连接器, 22 → 20 AWG 线规格
SC24WL-3S25
Souriau
Standard Circular Contacts Trim Trio Socket 24 AWG Contact Sz 20 CONTACT SKT CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size20,26-24awgwire Contact;Socket;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSCSer;Gold
UTS714CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 14, Red CONN RCPT CODING RING SIZE14 RED RECEPTACLE COLOR CODING SIZE 14 - RED CODING RING, UTS CIRCULAR CONNECTOR CODING RING, RECEPTACLE, SIZE14, RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,red Coding ring for receptacles size 14, UTS714CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 14
UTS714CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 14, Green CONN RCPT CODING RING SIZE14 GRN RECEPTACLE COLOR CODING SIZE 14 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,green Coding ring for receptacles size 14, UTS714CCRG, Souriau
UTS6JC1419P
Souriau
Standard Circular Connector 19P Strt Pin Plug Backshell Size 14 CONN PLUG CABLE 19X1.0 MALE 19 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts UTS Series connector,plasticcirc,size14,strplugw/bkshl,for19size20pincont,sealed CONN HSG PLUG 19POS CABLE PIN Coupling Plug UTS Trim Trio UTS 19P Male 14, UTS6JC1419P, Souriau Souriau UTS 系列 19路 电缆安装 直向 连接器 插头 , 公触点
UTS14DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 14 Connector Accessories Receptacle Sealing Cap Shell Size 14 CONN RCPT SEALING CAP SIZE 14 UTS RECEPTACLE DUSTCAP - SIZE 14 DUST CAP, RECEPTACLE, SIZE14 connectoraccessory,dustcapforsize14uts-seriesreceptacle Cap for receptacles size 14, UTS14DCG, Souriau
SC20WL-3S25
Souriau

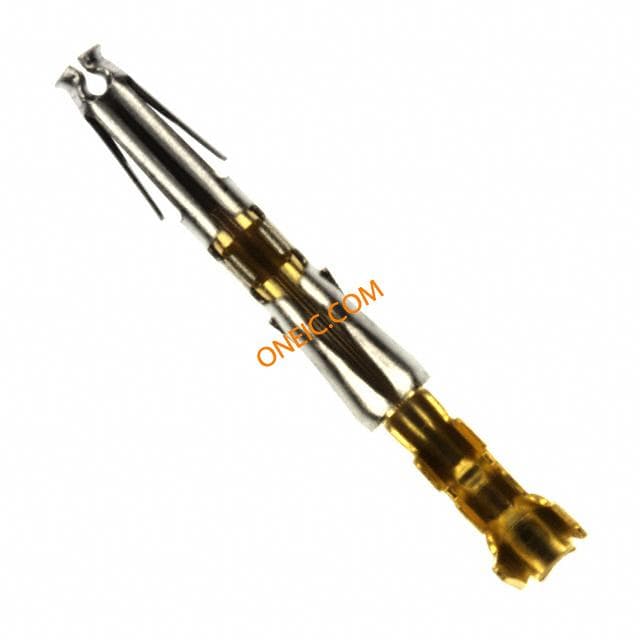

Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 20 CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size20,22-20awgwire Contact;Socket;Stamped;Sz20;Crimp;22-20AWG;TrimTrioSCSer;Gold
UTS714CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 14, Yellow CONN RCPT CODING RING SIZE14 YEL RECEPTACLE COLOR CODING SIZE 14 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,yellow
RCW5016K
Souriau
Standard Circular Contacts CIR CON FEM SLDR DIP CONT CONTACT SKT SOLDER GOLD SIZE 20
SC20WL3TK6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 CONTACT, FEMALE, 22-20AWG, CRIMP CRIMP SOCKET, 20AWG
SC24W-3S25
Souriau
Standard Circular Contacts Trim Trio Socket 24 AWG Contact Sz 16 CONTACT SKT CRIMP 24-26AWG GOLD
SC20W-3S25
Souriau Connection Technology
CONTACT SKT CRIMP 20-22AWG GOLD
SC24WL-3TK6
Souriau Connection Technology

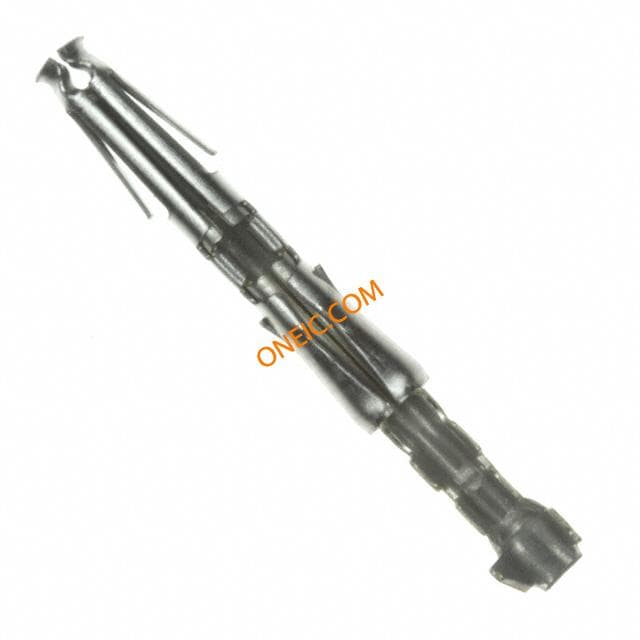

CONTACT SKT CRIMP 24-26AWG TIN connectorcomponent,stampedandformedcrimpsocketcont,size20,26-24awgwire Contact;Socket;Stamped;Sz20;Crimp;26-24AWG;TrimTrioSCSer;TinPlate
