RC24W3K
| Manufacturer | |
| Description | FEMALE MACHINED SEALOK UT0W Series Size 20 7.5A Female Circular Connector Contact, Crimp,Wire size 26 to 24AWG Pin & Socket Connectors Crimp Socket Contact 24-26 AWG CONTACT SOCKET, UT0W, 26-24AWG Female contact 0.13...0.25 mm² Female, RC24W3K, Souriau Souriau UT0W 系列 7.5A 母 压接端接 圆形 连接器 触芯, 使用于Trim Trio 连接器, 26 → 24 AWG 线规格 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pin & Socket Connectors | Standard Package | 100 |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | 6mΩ | Voltage - Breakdown | :1500V |
| Current Rating (Max) | 7.5A | ||
Mechanical
| Length | 22.5mm | Weight | 0.04 |
| Wire Gauge | 26 → 24 AWG | Termination | Crimp |
| Contact Size | 20 | Mounting Type | Cable Mount |
| Contact Finish | Gold over Nickel | Contact Material | Copper Alloy |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Contact Termination | :Crimp | Wire Gauge or Range - AWG | 26-24 |
| Wire Gauge or Range - mm2 | :0.25mm² | Diameter - Outside, Non-Expanded | :1.58mm |
Product Info
| Gender | Female | Series | * |
| Product Type | Contacts | For Use With/Related Products | :UT0W Connectors |
Documents & Media
PDF Document
PDF Document
Similar Parts
S20RCM
Souriau
Crimpers Crimp Tool Head for UTS 20 AWG Contacts TOOL DIE CRIMP 18-24AWG 20CONT CRIMP HEAD #20 RC RM CONTACT HEAD, CRIMP TOOL, UTS, RM/RC SIZE 20 DieHead;18-24AWG;20ContactSize;RM/RCContacts;UTSConnectors Crimp insert, S20RCM, Souriau Souriau UTS Series 系列 压接模具 , 26 → 18 AWG 线规格, 1.6mm 六角尺寸
$1757.6400
Details
SC24WL3S25
SOURIAU
CRIMP SOCKET, 24AWG Female #20 Stamped and formed crimp contact Female contact 0.13...0.25 mm² Female, SC24WL3S25, Souriau Souriau SC 系列 5A 母 压接端接 圆形 连接器 触芯, 使用于塑料 Sealok 连接器, 26 → 24 AWG 线规格
$4.0300
Details

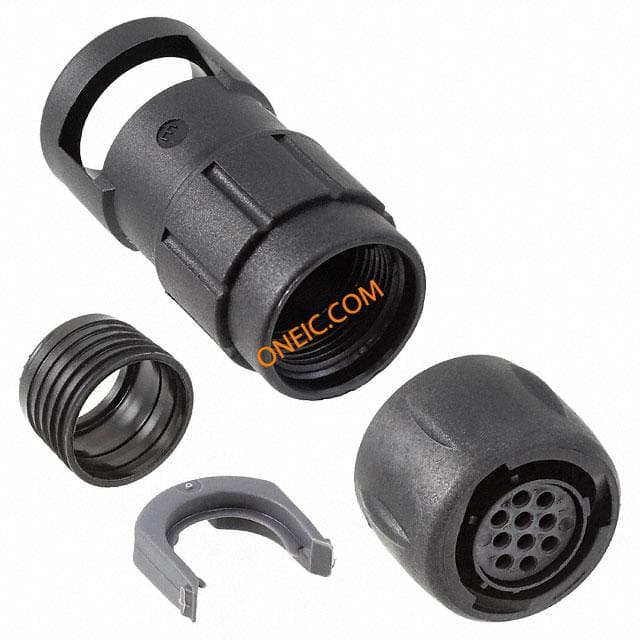

UTS6FC1210S
Souriau Connection Technology
CONN HSG PLUG 10POS INLINE SKT
$230.4520
Details

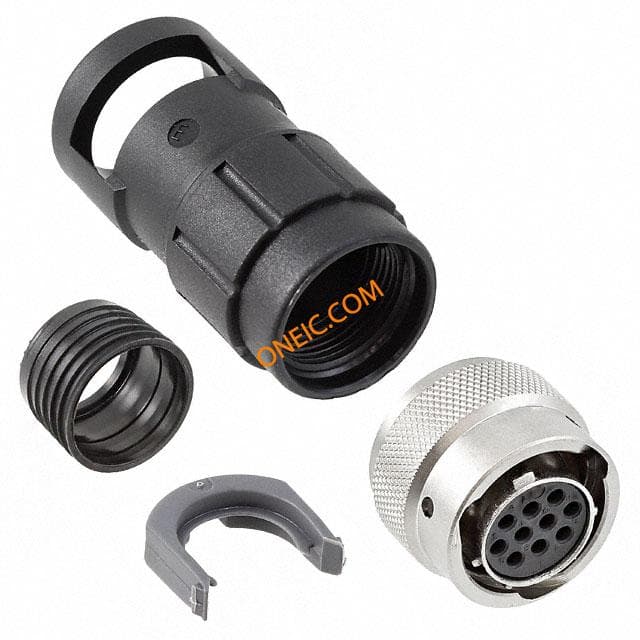

UT0W6FC1210SH
