UTS1JC1419P
| Manufacturer | |
| Description | Standard Circular Connector 19P Pin Recept Sz 14 Cable Mnt Backshell CONN HSNG RCPT 19POS INLINE MALE 19 Pole Female Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts RECEPTACLE, SIZE14, 19WAY, PIN Souriau 19路 电缆安装 直向 连接器 插座 , 公触点 |
| Category |
Business
| Tradename | Trim Trio | Product Category | Standard Circular Connector |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 5 A |
Mechanical
| Weight | 0.045 | Packaging | Bulk |
| Shell Size | 14 | Orientation | Keyed |
| Termination | Crimp | Contact Size | 20 |
| Contact Type | Crimp | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle for Male Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | In-Line | Shell Material | Thermoplastic |
| Insertion Angle | 14-19 | Material - Body | :Thermoplastic |
| 1st Contact Gender | Without Pin Contacts | Number of Contacts | 19 |
| Number of Positions | 19 | Shell Size - Insert | 14-19 |
| Shell Material, Finish | Thermoplastic | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | UTS | Features | Cap (Cover), Dust |
| CAD Drawing | 3D CAD Model | Product Type | Receptacles |
Environmental
| Ingress Protection | IP 68, IP 69 | Operating Temperature | +105°C |
Documents & Media
Similar Parts
UTS1JC1419P
Souriau
Standard Circular Connector 19P Pin Recept Sz 14 Cable Mnt Backshell CONN HSNG RCPT 19POS INLINE MALE 19 Pole Female Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts RECEPTACLE, SIZE14, 19WAY, PIN Souriau 19路 电缆安装 直向 连接器 插座 , 公触点
RM20W3K
Souriau
Standard Circular Contacts MALE CRIMP CONTACT AWG 20 CONTACT PIN CRIMP 20-22AWG GOLD PIN CONTACTS SIZE 20 - 0.35-0.5 MM2 CIRCULAR CONTACT, PIN, 22-20 AWG, CRIMP PINCONTACTSSIZE20-0.35-0.5MM2 Male contact 0.35...0.5 mm² Male, RM20W3K, Souriau Souriau UT0W 系列 7.5A 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
UTS714CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 14, Red CONN RCPT CODING RING SIZE14 RED RECEPTACLE COLOR CODING SIZE 14 - RED CODING RING, UTS CIRCULAR CONNECTOR CODING RING, RECEPTACLE, SIZE14, RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,red Coding ring for receptacles size 14, UTS714CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 14
UTS714CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 14, Green CONN RCPT CODING RING SIZE14 GRN RECEPTACLE COLOR CODING SIZE 14 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,green Coding ring for receptacles size 14, UTS714CCRG, Souriau
UTS14DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 14 Connector Accessories Receptacle Sealing Cap Shell Size 14 CONN RCPT SEALING CAP SIZE 14 UTS RECEPTACLE DUSTCAP - SIZE 14 DUST CAP, RECEPTACLE, SIZE14 connectoraccessory,dustcapforsize14uts-seriesreceptacle Cap for receptacles size 14, UTS14DCG, Souriau
UTS714CCRY
Souriau
Standard Circular Connector Receptacle Ring Shell Sz 14, Yellow CONN RCPT CODING RING SIZE14 YEL RECEPTACLE COLOR CODING SIZE 14 - YELLOW connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,yellow

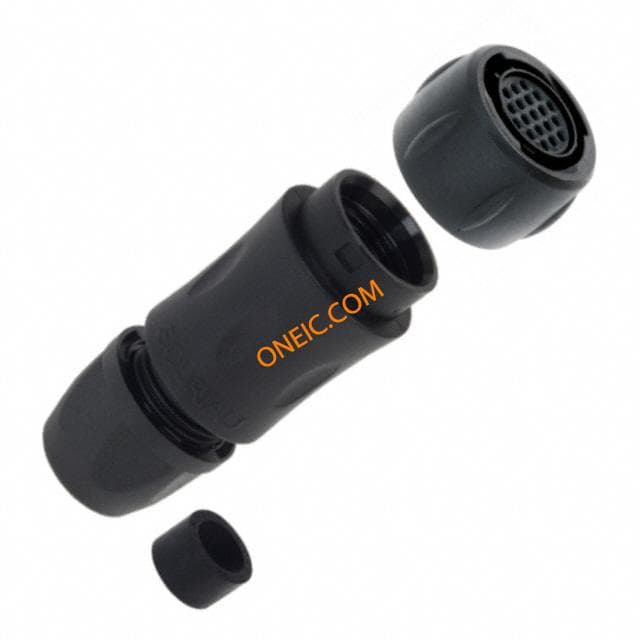

UTS6JC1419S
