UTS014E19S
| Manufacturer | |
| Description | Circular MIL Spec Connector 19P Sckt Receptacle Square Flange Sz 14E CONN RCPT SQ FLANGE 19POS W/SCKT 19 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts Standard Circular Connector 19P Sckt Receptacle Square Flange Sz 14E RECEPTACLE, HISEAL, SIZE14, 19WAY, SKT SquareFlangeReceptaclewith19SocketContacts Panel Mount Socket with Flange UTS Hi seal 19P Female 14, UTS014E19S, Souriau Souriau 19路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1513 |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 4A |
| Resistance Tolerance | Gasoil,MineralOil,AcidBath,BasicBath | ||
Mechanical
| Color | Black | Weight | 0.02 |
| Packaging | Bulk | Shell Size | 14 |
| Orientation | N (Normal) | Shell Style | Square Flange |
| Termination | Solder Cup | Contact Form | Female |
| Contact Type | SolderContactsLoaded | Nut Material | Metal |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Thermoplastic |
| Insertion Angle | 14-19 | Material - Body | :Thermoplastic |
| Contact Material | :Copper | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 19 |
| Contact Termination | :Solder | Number of Positions | 19 |
| Shell Size - Insert | 14-19 | Shell Material, Finish | Thermoplastic |
| Contact Finish Thickness | 16µin (0.40µm) | 1st Connector Mounting Type | :Panel |
Product Info
| Type | UTSConnector | Gender | Female |
| Series | UTS | Features | Cap (Cover), Dust |
| Product Type | Receptacles | ||
Environmental
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 105°C |
Documents & Media
Similar Parts

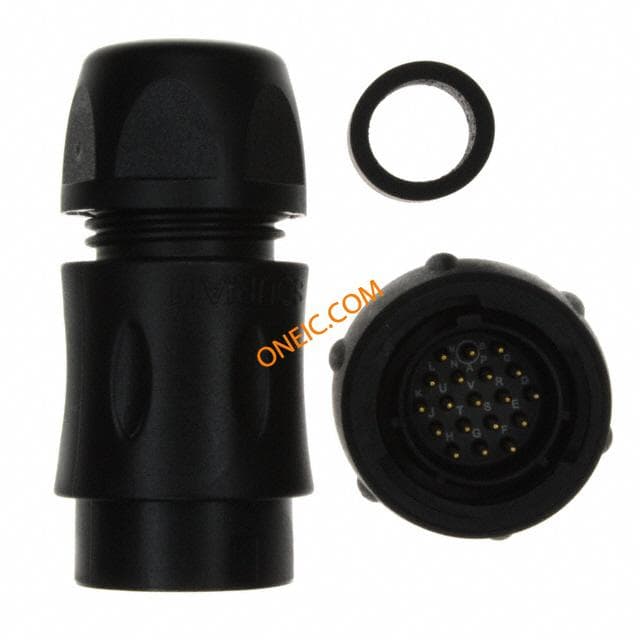

UTS6JC14E19P
Souriau
Circular MIL Spec Connector 19P Strt Pin Plug Backshell Size 14E CABLE HANDSOLTER CONT PLUG CONN PLUG CABLE 19POS W/PIN 19 Pole Male Straight Cable Mount MIL Spec Circular Connector, Shell Size 14 with Male Contacts Standard Circular Connector 19P Strt Pin Plug Backshell Size 14E PLUG, HISEAL, SIZE14, 19WAY, PIN CablePlugwith19PinContacts Coupling plug UTS Hi seal 19P Male 14, UTS6JC14E19P, Souriau Souriau 19路 电缆安装 直向 连接器 插头 , 公触点
UTS714E19S
Souriau
Circular MIL Spec Connector 19P Sckt Receptacle Jam Nut Size 14E CONN RCPT JAM NUT 19POS W/SCKT 19 Pole Female Straight Panel Mount MIL Spec Circular Connector, Shell Size 14 with Female Contacts Standard Circular Connector 19P Sckt Receptacle Jam Nut Size 14E JamnutReceptaclewith19SocketContacts Panel Mount Socket UTS Hi seal 19P Female 14, UTS714E19S, Souriau Souriau 19路 面板安装 直向 连接器 插座 , 母触点
UTS714CCRR
Souriau
Standard Circular Connector Receptacle Ring Shell Size 14, Red CONN RCPT CODING RING SIZE14 RED RECEPTACLE COLOR CODING SIZE 14 - RED CODING RING, UTS CIRCULAR CONNECTOR CODING RING, RECEPTACLE, SIZE14, RED connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,red Coding ring for receptacles size 14, UTS714CCRR, Souriau Souriau 红色 连接器环,适合外壳尺寸 14
UTS714CCRG
Souriau
Standard Circular Connector Receptacle Ring Shell Size 14, Green CONN RCPT CODING RING SIZE14 GRN RECEPTACLE COLOR CODING SIZE 14 - GREEN connectoraccessory,uts-series,optionalcolorcodedring,receptsize14,green Coding ring for receptacles size 14, UTS714CCRG, Souriau

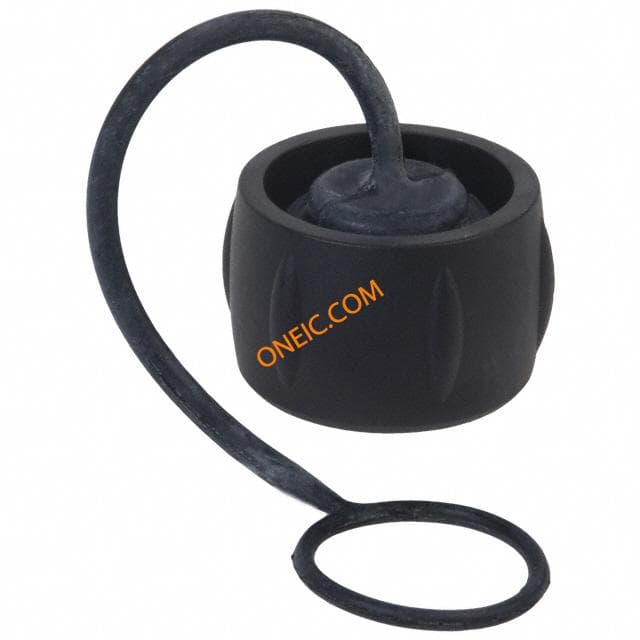

UTS14DCG
