UT07104SH
| Manufacturer | |
| Description | Standard Circular Connector 4P Sckt Receptacle Jam Nut Size 10 CONN RCPT FEMALE 4POS JAM NUT Conn Metal Circular SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Bag connector,metalcirc,jamnutrecept,for4size16socketcont,ip68/ip69ksealing |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1016 |
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Rad Hardened | No |
Electrical
| Voltage Rating | 250 V | ||
Mechanical
| Depth | 27 mm | Height | 27 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 10 | Orientation | N (Normal) |
| Shell Style | Jam Nut | Termination | Crimp |
| Contact Form | 4Signal | Contact Size | 16 |
| Contact Type | Crimp | Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Shell Plating | Nickel | Connector Type | Receptacle for Female Contacts |
| Fastening Type | Bayonet Lock | Mounting Style | Panel |
| Shell Material | Zinc Alloy | Insertion Angle | 10-4 |
| Length - Overall | 24.3 mm | 1st Contact Gender | Without Socket Contacts |
| Number of Contacts | 4 | Number of Positions | 4 |
| Shell Size - Insert | 10-4 | Shell Material, Finish | Zinc, Nickel Plated |
| Shell Size - Insert (Convert To) | 10-4 | ||
Product Info
| Note | Contacts Not Provided | Type | Metal Circular |
| Gender | RCP | Series | UT0 |
| Features | Shielded | Product Type | Receptacles |
| RF Family/Standard | UT0 | ||
Environmental
| Ingress Protection | IP 67 | Operating Temperature | -40C to 105C |
Documents & Media
Similar Parts
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT06104PH
Souriau
Standard Circular Connector 4P Straight Pin Plug Size 10 CONN PLUG CABLE 4POS MALE PIN HOUSING, FREE, 4WAY CONN HSG PLUG 4POS INLINE PIN connector,metalcircular,strplug,for4size16pincontact,ip68/ip69ksealing Cable plug UT0 4-pin Trim Trio UT0 4P Male 10, UT06104PH, Souriau
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate

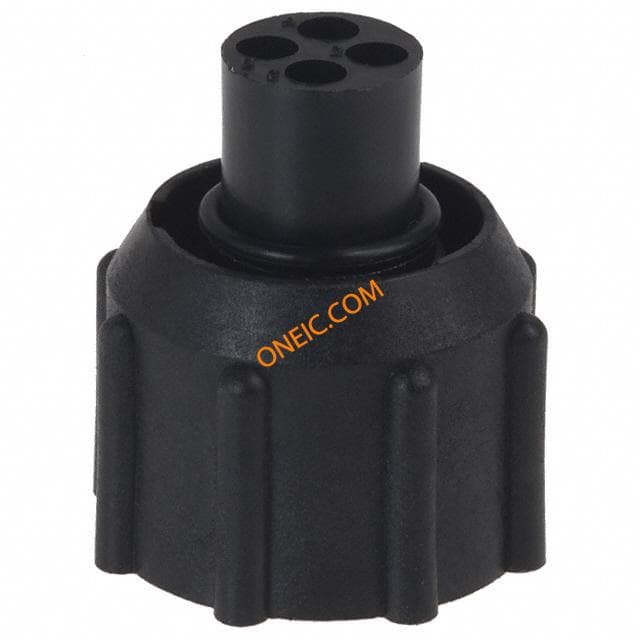

UTP6104P
Souriau
Standard Circular Connector 4P Straight Pin Plug Shell Size 10 CONN PLUG CABLE MALE 4POS 4 Way Male Cable Mount Connector,Male Contacts,Shell Size 10 PLUG, FREE, 4WAY connector,circularplastic,strcableplug,size10,for4size16pincontact Souriau 4路 电缆安装 连接器 卡口耦合 插头 , 公触点, 外壳尺寸10
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP

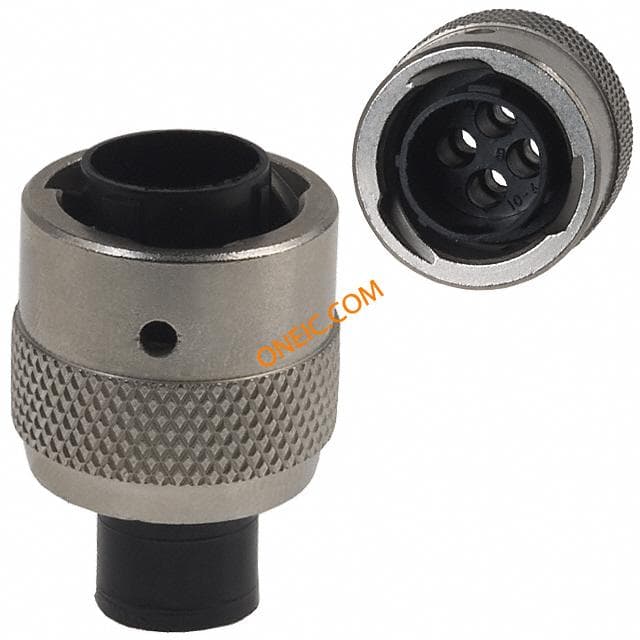

UTG610-4PN
