UT06104PH
| Manufacturer | |
| Description | Standard Circular Connector 4P Straight Pin Plug Size 10 CONN PLUG CABLE 4POS MALE PIN HOUSING, FREE, 4WAY CONN HSG PLUG 4POS INLINE PIN connector,metalcircular,strplug,for4size16pincontact,ip68/ip69ksealing Cable plug UT0 4-pin Trim Trio UT0 4P Male 10, UT06104PH, Souriau |
| Category |
Business
| Tradename | Trim Trio | Product Category | Standard Circular Connector |
| Standard Package | 25 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage - Test | :2000V | Voltage Rating | 250 V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.01341 | Packaging | Bulk |
| Shell Size | 10 | Orientation | N (Normal) |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Plug for Male Contacts | Fastening Type | Bayonet Lock |
| Shell Material | Zinc Alloy | Insertion Angle | 10-4 |
| Material - Body | :Zinc Alloy | 1st Contact Gender | Without Pin Contacts |
| Mating Orientation | Bayonet | Number of Contacts | 4 |
| Number of Positions | 4 | Shell Size - Insert | 10-4 |
| Shell Material, Finish | Zinc, Nickel Plated | 1st Connector Mounting Type | :Cable |
Product Info
| Note | Contacts Not Provided | Gender | :Plug |
| Series | UT0 | Features | Shielded |
| Product Type | Cable Plugs | ||
Environmental
| Mating Cycles | :500 | NEMA Frame Size | :IP67, IP68, IP69K |
| Ingress Protection | IP 67 | Operating Temperature | :+105°C |
Documents & Media
Similar Parts
UT00104SH
Souriau
Standard Circular Connector 4P Sckt Receptacle Wall Mount Size 10 Conn Metal Circular SKT 4 POS Crimp ST Wall Mount 4 Terminal 1 Port Bag CONN RCPT FEMALE 4POS WALL MNT connector;metal circ;wall recept;for 4 size 16 socket cont;ip68/ip69k sealing UTO0104SH female square flange receptacle, IP67 and 48h salt spray connector,metalcirc,wallrecept,for4size16socketcont,ip68/ip69ksealing
UT07104SH
Souriau
Standard Circular Connector 4P Sckt Receptacle Jam Nut Size 10 CONN RCPT FEMALE 4POS JAM NUT Conn Metal Circular SKT 4 POS Crimp ST Panel Mount 4 Terminal 1 Port Bag connector,metalcirc,jamnutrecept,for4size16socketcont,ip68/ip69ksealing
UT010JCS
Souriau
Standard Circular Connector Short Cable Clamp IP68 Shell Size 10 CONN CABLE CLAMP METAL #10 IP68 HOOD, IP68, SIZE 10 StrainReliefcableclampAssyShell10IP68Metal Strain relief size 10 3...6 mm, UT010JCS, Souriau

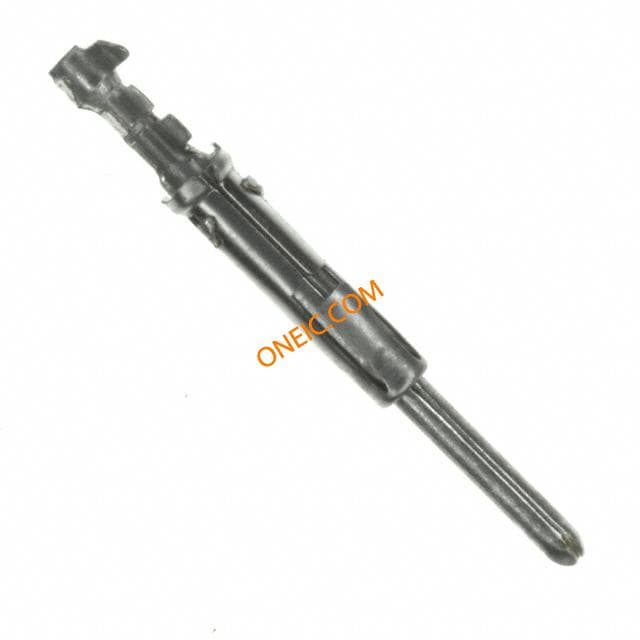

SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD

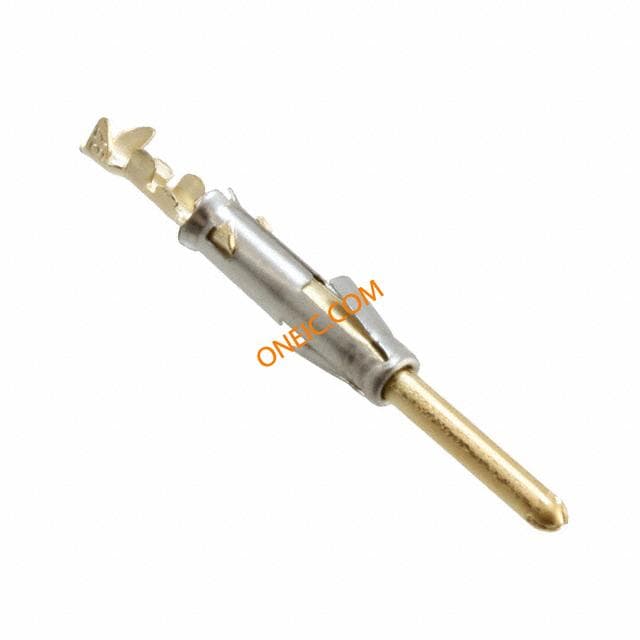

SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts

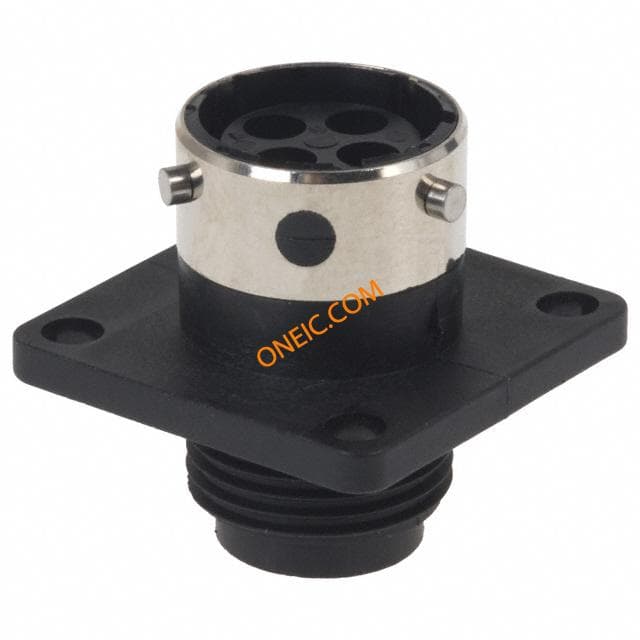

UTG010-4S
Souriau
Standard Circular Connector 4P Socket Receptacle Wall Mount Size 10 Conn CPC With Metal Coupling SKT 4 POS Crimp ST Wall Mount 4 Terminal 1 Port Bag CONN RCPT FEMALE 4POS WALL MT connector,plasticcircular,metalcouplingring,wallrecept,size10,for4socket CONN HSG RCPT 4POS WALL MNT SKT Female receptacle Trim Trio 4-pin Trim Trio UTG 4P Female 10, UTG010-4S, Souriau
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
UTP0104S
Souriau
Standard Circular Connector 4P Socket Receptacle Wall Mount Size 10 CONN RCPT FEMALE 4POS WALL MNT 4 Way Female Wall Mount Connector,Female Contacts,Shell Size 10 SOCKET, PANEL MOUNT, 4WAY connector,plasticcircular,wallreceptacle,size10,for4size16socketcontact Souriau 4路 壁挂式 连接器 卡口耦合 插座 ,母触芯, 外壳尺寸10
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD

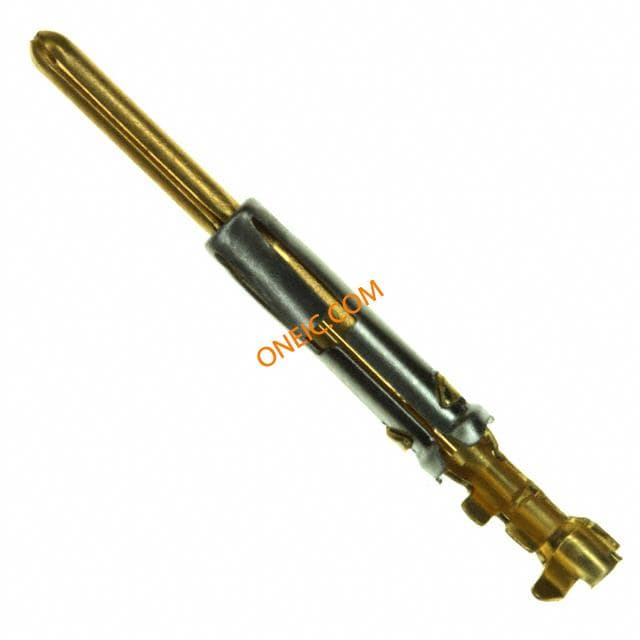

SM20M-1S6
