UT062028SH
| Manufacturer | |
| Description | Standard Circular Connector 28P Strt Socket Plug Size 20 Conn Metal Circular SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Bag CONN PLUG CABLE 28POS FEMALE SOCKET HOUSING, FREE, 28WAY CONN HSG PLUG 28POS CABLE SKT Cable socket UT0 28-pin Trim Trio UT0 28P Female 20, UT062028SH, Souriau Souriau UT0 系列 28路 电缆安装 直向 圆形连接器 插头 , 母触点, 卡口式接合 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1042 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Rad Hardened | No |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage - Test | :2000V | Voltage Rating | 250 V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Depth | 3.2 mm | Height | 2.5 mm |
| Weight | 0.0386 | Diameter | 37.5 mm |
| Packaging | Bag | Cable Exit | No |
| Shell Size | 20 | Orientation | N (Normal) |
| Termination | Crimp | Contact Form | 28Signal |
| Contact Size | 16 | Contact Type | 28Signal |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Connector Type | Plug for Female Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | - | Shell Material | Zinc Alloy |
| Insertion Angle | 20-28 | Material - Body | :Zinc Alloy |
| Length - Overall | 24.9 mm | Termination Style | SMT |
| 1st Contact Gender | Without Socket Contacts | Number of Contacts | 28 |
| Number of Positions | 28 | Shell Size - Insert | 20-28 |
| Shell Material, Finish | Zinc, Nickel Plated | 1st Connector Mounting Type | :Cable |
| Shell Size - Insert (Convert To) | 20-28 | ||
Product Info
| Note | Contacts Not Provided | Type | Metal Circular |
| Gender | PL | Series | UT0 |
| Features | Shielded | Product Type | Cable Plugs |
| RF Family/Standard | UT0 | ||
Environmental
| Mating Cycles | :500 | NEMA Frame Size | :IP67, IP68, IP69K |
| Ingress Protection | IP 67 | Operating Temperature | -40C to 105C |
Documents & Media
Similar Parts
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT020AC
Souriau
Standard Circular Connector Cable Clamp Size 20 With Strain Relief CONN CABLE CLAMP METAL #20 HOOD, METAL, STRAIN RELIEF, SIZE 20 Souriau UT0 系列 尺寸20 电缆夹, 带应力消除, 使用于UT0-UT0W 系列圆形连接器
UT072028PH
Souriau
Standard Circular Connector 28P Pin Receptacle Jam Nut Size 20 CONN RCPT MALE 28POS JAM NUT
UT002028PH
Souriau
Standard Circular Connector 28P Pin Receptacle Wall Mount Size 20 CONN RCPT MALE 28POS WALL MNT Conn Metal Circular PIN 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate

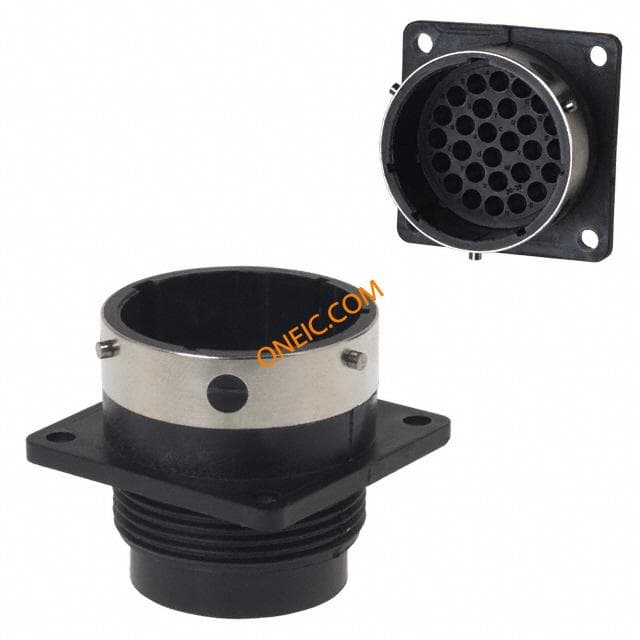

UTG020-28P
