UT002028PH
| Manufacturer | |
| Description | Standard Circular Connector 28P Pin Receptacle Wall Mount Size 20 CONN RCPT MALE 28POS WALL MNT Conn Metal Circular PIN 28 POS Crimp ST Wall Mount 28 Terminal 1 Port Bag |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1011 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 250 V | ||
Mechanical
| Depth | 36.5 mm | Height | 36.5 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 20 | Orientation | N (Normal) |
| Shell Style | Square Flange | Termination | Crimp |
| Contact Form | 28Signal | Contact Size | 16 |
| Contact Type | Crimp | Mounting Type | Panel Mount, Flange |
| Shell Plating | Nickel | Connector Type | Receptacle for Male Contacts |
| Fastening Type | Bayonet Lock | Mounting Style | Wall |
| Shell Material | Zinc Alloy | Insertion Angle | 20-28 |
| Length - Overall | 33.3 mm | 1st Contact Gender | Without Pin Contacts |
| Number of Contacts | 28 | Number of Positions | 28 |
| Shell Size - Insert | 20-28 | Shell Material, Finish | Zinc, Nickel Plated |
| Shell Size - Insert (Convert To) | 20-28 | ||
Product Info
| Note | Contacts Not Provided | Type | Metal Circular |
| Gender | RCP | Series | UT0 |
| Features | Shielded | Product Type | Receptacles |
| RF Family/Standard | UT0 | ||
Environmental
| Ingress Protection | IP 67 | Operating Temperature | -40C to 105C |
Documents & Media
Similar Parts
UT062028SH
Souriau
Standard Circular Connector 28P Strt Socket Plug Size 20 Conn Metal Circular SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Bag CONN PLUG CABLE 28POS FEMALE SOCKET HOUSING, FREE, 28WAY CONN HSG PLUG 28POS CABLE SKT Cable socket UT0 28-pin Trim Trio UT0 28P Female 20, UT062028SH, Souriau Souriau UT0 系列 28路 电缆安装 直向 圆形连接器 插头 , 母触点, 卡口式接合
UTFD17B
Souriau
Circular MIL Spec Tools, Hardware & Accessories Receptacle Seal Wall Mount Size 20 CONN SEALING FOR WALL RCPT #20 UTFD系列 法兰 密封填料, 外壳尺寸20, 31.8mm直径, 使用于UTP-UTG-UT0-UT0W, -40 → +105 °C
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD

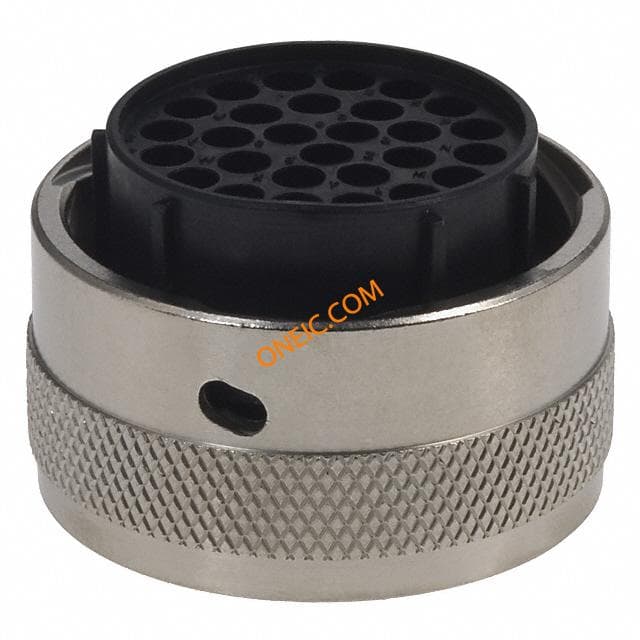

UTG620-28SN
Souriau
Standard Circular Connector 28P Strt Socket Plug Shell Size 20 Conn Metalok Bantam SKT 28 POS Crimp ST Cable Mount 28 Terminal 1 Port CONN PLUG CABLE FEMALE 28POS connector;plastic circular;metal coupling ring;str plug;size 20;for 28 socket co connector,plasticcircular,metalcouplingring,strplug,size20,for28socketco Cable socket, Trim Trio 28-pin Trim Trio UTG 28P Female 20, UTG620-28SN, Souriau
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG GOLD 2PCSTRIPHYFPIN#22-20
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts
SM20ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 16-18AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire connectorcomp,size16stamped&formedcrimppincont,for18-16awgwire,gold
SM14ML-1S6
Souriau Connection Technology
CONTACT PIN CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1D70
Souriau Connection Technology
CONTACT PIN CRIMP 16-18AWG GOLD connector component;stamped and formed crimp pin cont;size 16;for 18-16awg wire connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire Contact;Pin;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSMSer;GoldPlate

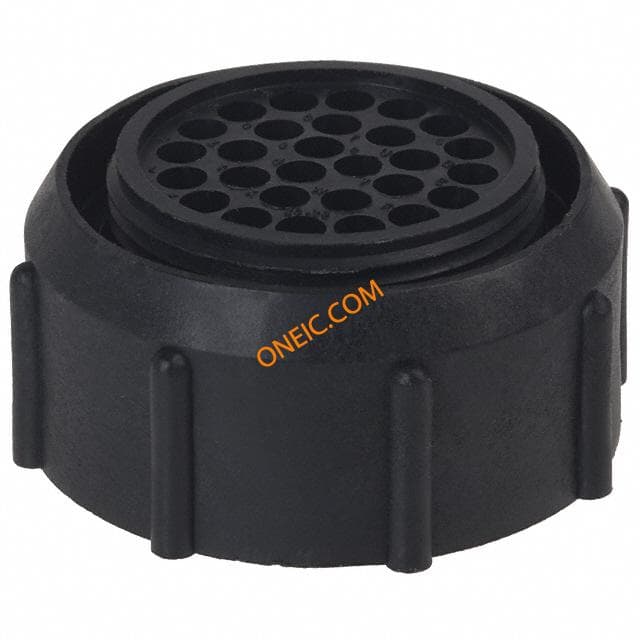

UTP62028S
