UT061619PH
| Manufacturer | |
| Description | Standard Circular Connector 19P Strt Pin Plug Size 16 Conn Metal Circular PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE 19POS MALE PIN HOUSING, FREE, 19WAY Cable plug UT0 19-pin Trim Trio UT0 19P Male 16, UT061619PH, Souriau |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1039 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Test | :2000V | Voltage Rating | 250 V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.02603 | Diameter | 32.45 |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 16 | Orientation | N (Normal) |
| Termination | Crimp | Contact Size | 16 |
| Contact Type | 19Signal | Mounting Type | Cable Mount |
| Shell Plating | Nickel | Connector Type | Plug for Male Contacts |
| Fastening Type | Bayonet Lock | Shell Material | Zinc Alloy |
| Insertion Angle | 16-19 | Material - Body | :Zinc Alloy |
| Length - Overall | 33 | 1st Contact Gender | Without Pin Contacts |
| Number of Contacts | 19 | Number of Positions | 19 |
| Shell Size - Insert | 16-19 | Shell Material, Finish | Zinc, Nickel Plated |
| 1st Connector Mounting Type | :Cable | Shell Size - Insert (Convert To) | 16-19 |
Product Info
| Note | Contacts Not Provided | Type | Metal Circular |
| Gender | PL | Series | UT0 |
| Features | Shielded | Product Type | Cable Plugs |
Environmental
| Mating Cycles | :500 | NEMA Frame Size | :IP67, IP68, IP69K |
| Ingress Protection | IP 67 | Operating Temperature | :+105°C |
Documents & Media
Similar Parts
UT001619SH
Souriau
Standard Circular Connector 19P Sckt Receptacle Wall Mount Size 16 Conn Metal Circular SKT 19 POS Crimp ST Wall Mount 19 Terminal 1 Port Bag CONN RCPT FEMALE 19POS WALL MNT UTO01619SH female square flange receptacle, IP67 and 48h salt spray Souriau UT0 系列 19路 壁挂式 直向 圆形连接器 插座 , 母触点, 卡口式接合
UT071619SH
Souriau
Standard Circular Connector 19P Sckt Receptacle Jam Nut Size 16 CONN RCPT FEMALE 19POS JAM NUT RECEPTACLE, FEMALE, SIZE16, 19WAY Souriau 19路 面板安装 连接器 插座 , 母触芯, 外壳尺寸16
UT016AC
Souriau
Standard Circular Connector Cable Clamp Size 16 With Strain Relief CONN CABLE CLAMP METAL #16 MetalCircularConnector UTO-UTOW cable clamp,s/relief,size 16
SM24ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG TIN Tin plate crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格

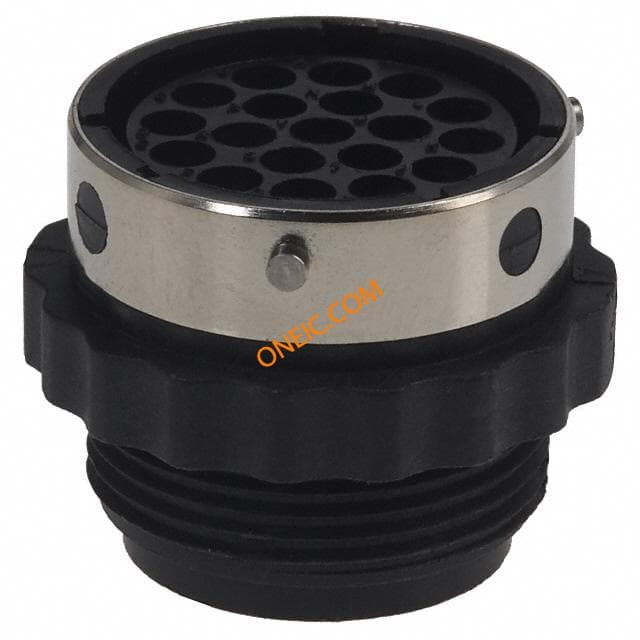

UTG116-19S
Souriau
Standard Circular Connector 19P Sckt Receptacle Cable Mount Size 16 CONN RCPT CABLE FEMALE 19POS CONNECTOR, CIRCULAR, RCPT, SZ16-19, 8POS, PANEL METALOKBANTAMFREEHANGINGRECEPTACLE
SM14M-1S6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 14AWG GOLD
SM24ML-1D70
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD Gold flash crimp pin contact,26-24awg connectorcomponent,stampedandformedcrimppincont,size16,for26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldPlate Souriau 公 压接端接 圆形 连接器 触芯, 26 → 24 AWG 线规格
SM24M1TK6
Souriau
Standard Circular Connector Trim Trio Pin Crimp 24 AWG Contact Sz 16 Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG TIN CIRCULAR CONTACT, PIN, 26-24AWG, CRIMP tapeandreelcontacts
RM16M23D28
Souriau
Standard Circular Contacts MACHINED PIN 20-16 Contact PIN Crimp ST Cable Mount Bulk CONTACT PIN CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp pin contact;for 20-16awg wire;gold plated CONTACT, PIN, 20-16AWG, CRIMP connectorcomp,size16machinedcrimppincontact,for20-16awgwire,goldplated Contact;Pin;Machined;Sz16;Crimp;20-16AWG;TrimTrioRMSer;GoldPlate
SM14M1TK6
Souriau
Standard Circular Contacts Trim Trio Pin Crimp 14 AWG Contact Sz 16 CONTACT PIN CRIMP 14AWG TIN CIRCULAR CONTACT, PIN, 14AWG, CRIMP

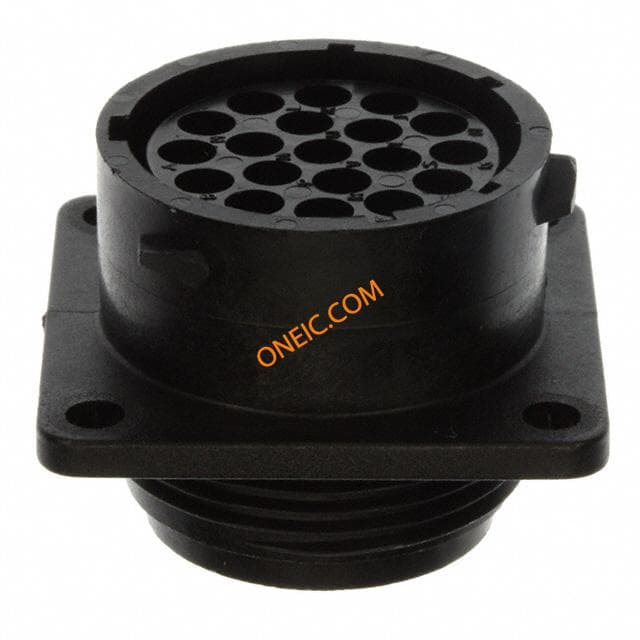

UTP01619SH
Souriau
Standard Circular Connector 19P Sckt Receptacle Wall Mount Size 16 CONN RCPT FEMALE 19POS WALL MNT
SM24M-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 24-26AWG GOLD
SM20ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 20-22AWG TIN Tin plate crimp pin contact,22-20awg connectorcomponent,stampedandformedcrimpcontact,size16,for22-20awgwire Contact;Pin;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 22 → 20 AWG 线规格
SM24ML-1S6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 24-26AWG GOLD connectorcomponent,stampedandformedcrimppincontact,size16,26-24awgwire Contact;Pin;Stamped;Sz16;Crimp;26-24AWG;TrimTrioSMSer;GoldFlashAll
SM14ML-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Loose Piece CONTACT PIN CRIMP 14AWG TIN Souriau G-Bantamate, MBG, SMS Qikmate, UT-Bantam, UTG, UTGS, UTP SeriesSize 16 Tin Plated Crimp Pin Connector, 14AWG connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;TinPlate Souriau 公 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SM20M-1TK6
SOURIAU
Contact PIN Crimp ST Cable Mount Reel CONTACT PIN CRIMP 20-22AWG TIN tapeandreelcontacts

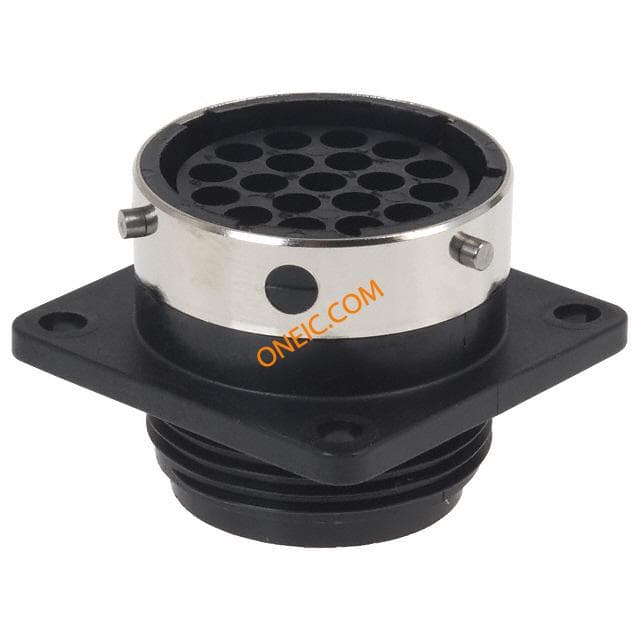

UTG01619S
SOURIAU
Conn CPC With Metal Coupling SKT 19 POS Crimp ST Wall Mount 19 Terminal 1 Port Bag CONN RCPT FEMALE 19POS WALL MT RECEPTACLE, SIZE16, 19WAY, SKT Conn;Circ;Socket;16ShellSz;FemaleInsert;19#16SocketCnts;PnlMnt;UTG CONN HSG RCPT 19POS WALL MNT SKT
SM14ML-1S6
Souriau Connection Technology
CONTACT PIN CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimppincont,size16,for14awgwire Contact;Pin;Stamped;Sz16;Crimp;14AWG;TrimTrioSMSer;GoldFlashAll
SM16ML-1D70
Souriau Connection Technology
CONTACT PIN CRIMP 16-18AWG GOLD connector component;stamped and formed crimp pin cont;size 16;for 18-16awg wire connectorcomponent,stampedandformedcrimppincont,size16,for18-16awgwire Contact;Pin;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSMSer;GoldPlate

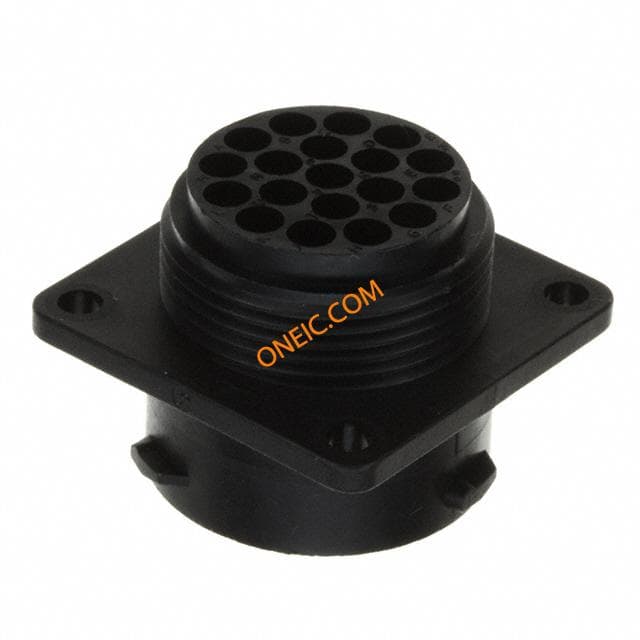

UTP01619S
