UT001619SH
| Manufacturer | |
| Description | Standard Circular Connector 19P Sckt Receptacle Wall Mount Size 16 Conn Metal Circular SKT 19 POS Crimp ST Wall Mount 19 Terminal 1 Port Bag CONN RCPT FEMALE 19POS WALL MNT UTO01619SH female square flange receptacle, IP67 and 48h salt spray Souriau UT0 系列 19路 壁挂式 直向 圆形连接器 插座 , 母触点, 卡口式接合 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1006 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | Rad Hardened | No |
Electrical
| Voltage Rating | 250 V | ||
Mechanical
| Depth | 31 mm | Height | 31 mm |
| Weight | 0.027 | Packaging | Bag |
| Cable Exit | No | Shell Size | 16 |
| Orientation | N (Normal) | Shell Style | Square Flange |
| Termination | Crimp | Contact Form | 19Signal |
| Contact Size | 16 | Contact Type | 19Signal |
| Mounting Type | Wall Mount | Shell Plating | Nickel |
| Connector Type | Receptacle for Female Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | Wall | Shell Material | Zinc Alloy |
| Insertion Angle | 16-19 | Length - Overall | 24.3 mm |
| 1st Contact Gender | Without Socket Contacts | Number of Contacts | 19 |
| Number of Positions | 19 | Shell Size - Insert | 16-19 |
| Shell Material, Finish | Zinc, Nickel Plated | Shell Size - Insert (Convert To) | 16-19 |
Product Info
| Note | Contacts Not Provided | Type | Metal Circular |
| Gender | RCP | Series | UT0 |
| Features | Shielded | Product Type | Receptacles |
| RF Family/Standard | UT0 | ||
Environmental
| Ingress Protection | IP 67 | Operating Temperature | -40C to 105C |
Documents & Media
Similar Parts
SC16ML1S31
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD Contact;Socket;16Size1.6mm(0.0625);16AWG;TRIMTRIO Crimp socket Female 18...16 AWG, SC16ML1S31, Souriau
UT061619PH
Souriau
Standard Circular Connector 19P Strt Pin Plug Size 16 Conn Metal Circular PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE 19POS MALE PIN HOUSING, FREE, 19WAY Cable plug UT0 19-pin Trim Trio UT0 19P Male 16, UT061619PH, Souriau
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate

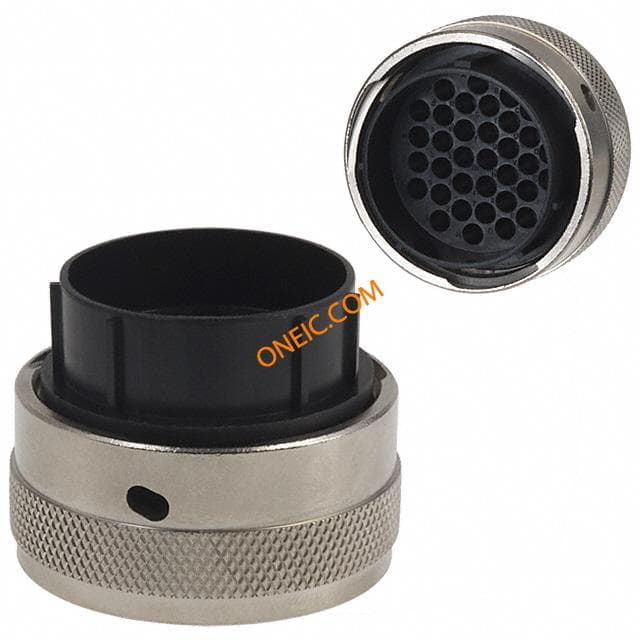

UTG61619PN
Souriau
Standard Circular Connector 19P Strt Pin Plug Shell Size 16 Conn Metalok Bantam PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG CABLE MALE 19POS CIRCULAR CONNECTOR, PLUG, 16-19, CABLE Conn.;Circ.;Plug;16ShellSize;MaleInsert;19#16PinContacts;UTG
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格
SC24M1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG TIN Pin & Socket Connectors Trim Trio Socket 24 AWG Contact Sz 16 CIRCULAR CONTACT, SKT, 26-24AWG, CRIMP tapeandreelcontacts
SC20M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 20-22AWG GOLD

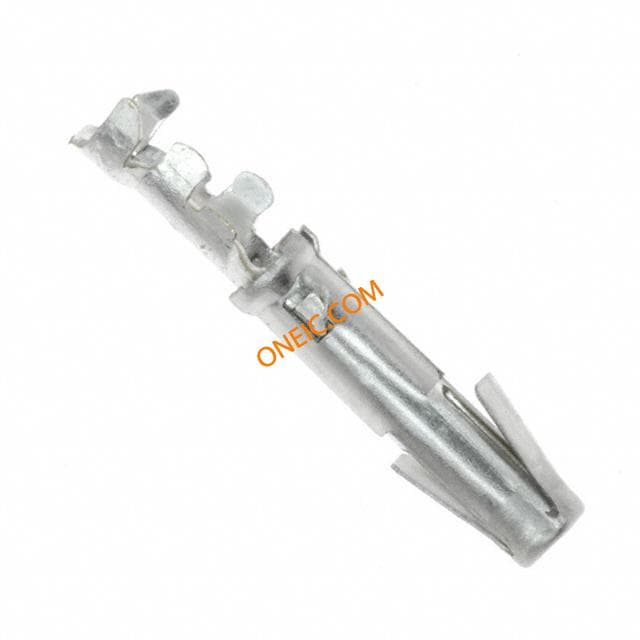

SC20ML-1TK6
