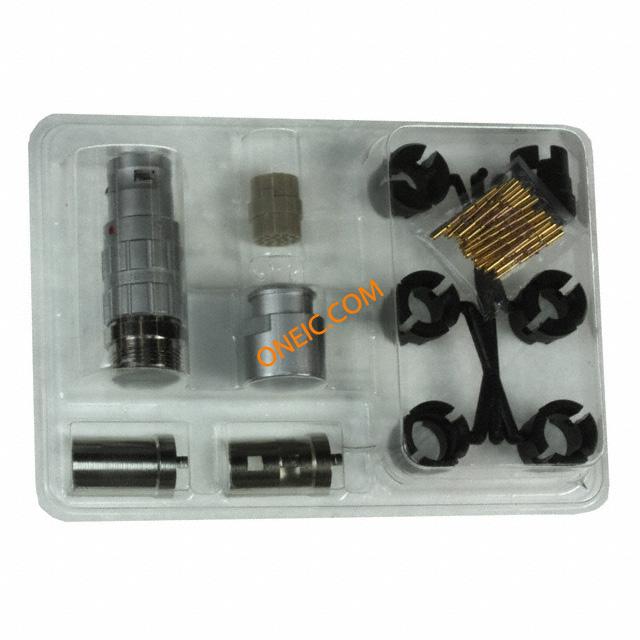

JBXFD2G19MCSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 19P Strt Pin Plug Crimp Shell Size 2 Conn Push-Pull M 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CONN PLUG 19POS STRAIGHT CRIMP JBXPLUGFD |
| Category |
Business
| Tradename | JBX | Other Names | SOU1576 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 5A |
Mechanical
| Diameter | 15 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 2 |
| Orientation | G | Shell Style | Plug |
| Termination | Crimp | Contact Type | 19Signal |
| Mounting Type | Cable Mount | Shell Plating | Chrome Over Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Contact Material | Brass |
| Length - Overall | 52 | Termination Style | Crimp |
| 1st Contact Gender | M | Number of Contacts | 19 |
| Number of Positions | 19 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | PL |
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
