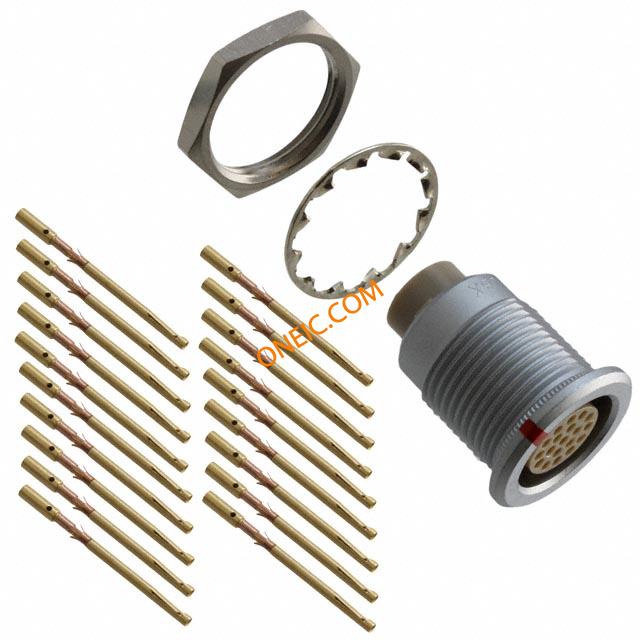

JBXER2G19FCSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 19P Socket Recept Crimp Panel Mnt Sz 2 Conn Push-Pull SKT 19 POS Crimp ST Panel Mount 19 Terminal 1 Port Blister CONN RCPT 19POS PANEL MNT CRIMP JBX2REC-19CRIMP |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1611 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 5A |
Mechanical
| Packaging | Blister | Cable Exit | No |
| Shell Size | 2 | Wire Gauge | 22 |
| Orientation | G | Shell Style | Receptacle |
| Termination | Crimp | Contact Type | 19Signal |
| Mounting Type | Panel Mount | Shell Plating | Chrome Over Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Mounting Style | Panel |
| Shell Material | Hybrid | Contact Material | Copper Nickel |
| Length - Overall | 24 | Termination Style | Crimp |
| 1st Contact Gender | SKT | Number of Contacts | 19 |
| Number of Positions | 19 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts

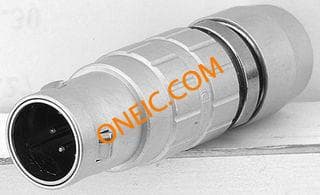

JBXFD2G19MSSDSR
