点击放大查看

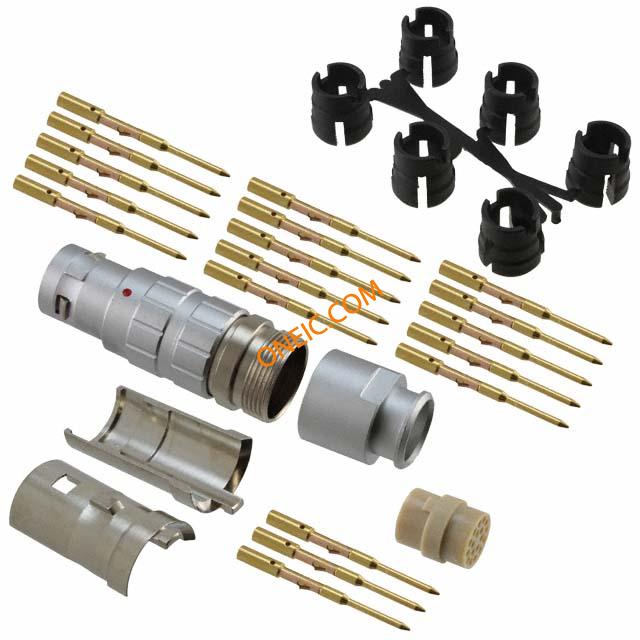

JBXFD2G18MCSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 18P Strt Pin Plug Crimp Shell Size 2 CONN PLUG 18POS STR CABLE CRIMP CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL2,10P,SOLDER |
| Category |
Business
| Tradename | JBX | Other Names | SOU1711 |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 1400 VDC | Current Rating (Max) | 5.5 A |
Mechanical
| Size | 2 | Packaging | Bulk |
| Orientation | G | Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pins |
| Contact Finish | Chrome over Nickel | Fastening Type | Push-Pull |
| Termination Style | Crimp | Number of Contacts | 18 |
| Number of Positions | 18 | Shell Size - Insert | 2 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | CablePlug | Series | JBX |
| Features | Cable Clamp, Shielded | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
