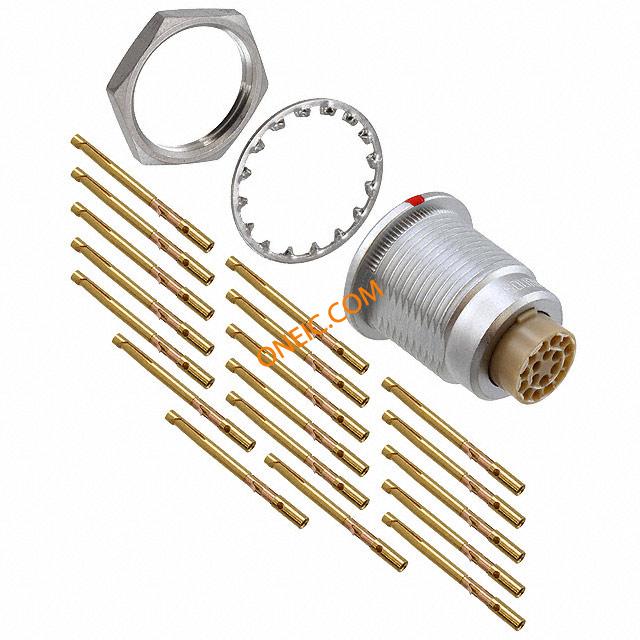

JBXER2G18FCSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 18P Socket Recept Crimp Panel Mnt Sz 2 CONN RCPT 18POS FRONT MNT CRIMP CIRCULARPUSHPULLCONNECTOR,RCPT,SHELL2,18P,CRIMP |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1683 |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 5.5A |
Mechanical
| Size | 2 | Packaging | Bulk |
| Orientation | G | Termination | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Number of Contacts | 18 | Number of Positions | 18 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | PanelSocket | Features | Shielded |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
