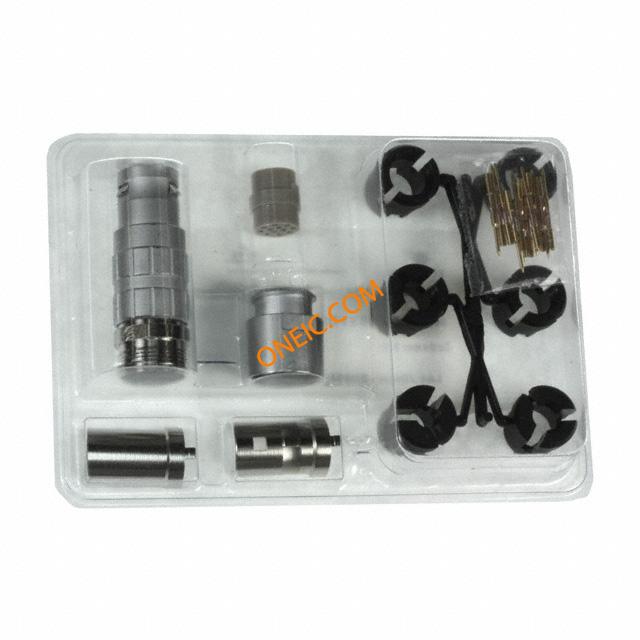

JBXFD2G12MCSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P Strt Pin Plug Crimp Shell Size 2 Conn Push-Pull M 12 POS Crimp ST Cable Mount 12 Terminal 1 Port CONN PLUG 12POS STRAIGHT CRIMP JBXPLUGFD |
| Category |
Business
| Tradename | JBX | Other Names | SOU1574 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 7A |
Mechanical
| Diameter | 15 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 2 |
| Wire Gauge | 22 | Orientation | G |
| Shell Style | Plug | Termination | Crimp |
| Contact Type | 12Signal | Mounting Type | Cable Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Hybrid |
| Contact Material | Brass | Length - Overall | 52 |
| Termination Style | Crimp | 1st Contact Gender | M |
| Number of Contacts | 12 | Number of Positions | 12 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | Push-Pull | Gender | PL |
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
JBXEP2G12FSSDS
Souriau
Circular Push Pull Connectors 12P Socket Recept Solder Panel Mt Sz 2 CONN RCPT 12POS REAR MNT SKT SLD JBX-FIXEDRECSHELLSIZE
JBXEP2G12FQSDS
Souriau
Circular Push Pull Connectors 12P Socket Recept R/A PCB Panel Mt Sz2 REAR MNT RCPT 12POS FEMALE PCB JBXSIZE12RTANGLEPCB
JBXER2G12FSSDSR
Souriau
Circular Push Pull Connectors 12P Socket Recept Solder Panel Mt Sz 2 Conn Push-Pull SKT 12 POS Solder ST Panel Mount 12 Terminal 1 Port Blister CONN RCPT 12POS PANEL MT SOLDER JBXrecept2-12R

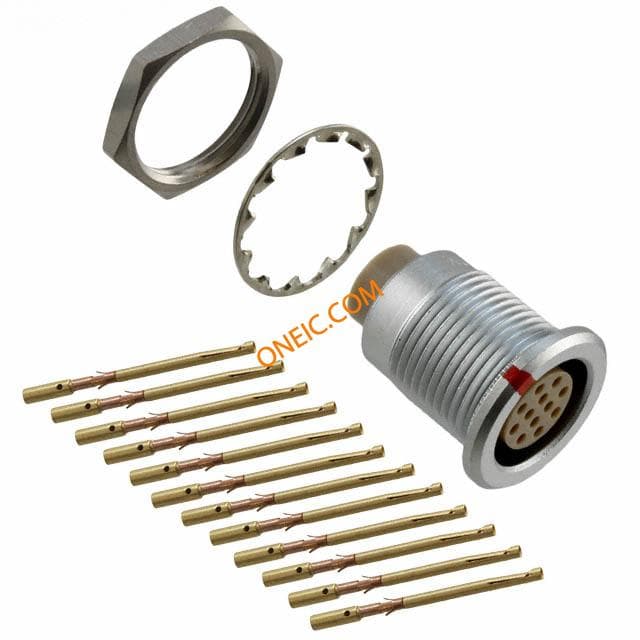

JBXER2G12FCSDSR
Souriau
Circular Push Pull Connectors 12P Socket Recept Crimp Panel Mnt Sz 2 CONN RCPT 12POS PANEL MNT CRIMP JBX-PANELREC12POS
JBX2MPN
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 2, Black Connector Accessories Protective Boot Elastollan Black Shell Size 2 CONN BOOT PROTECTIVE SIZE 2 BLK CIRCULARPUSHPULLCONNECTOR,PROTECTIVEBOOT,BLACK
JBX2MPA
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 2, Blue CONN BOOT PROTECTIVE SIZE 2 BLUE 335D7023F5

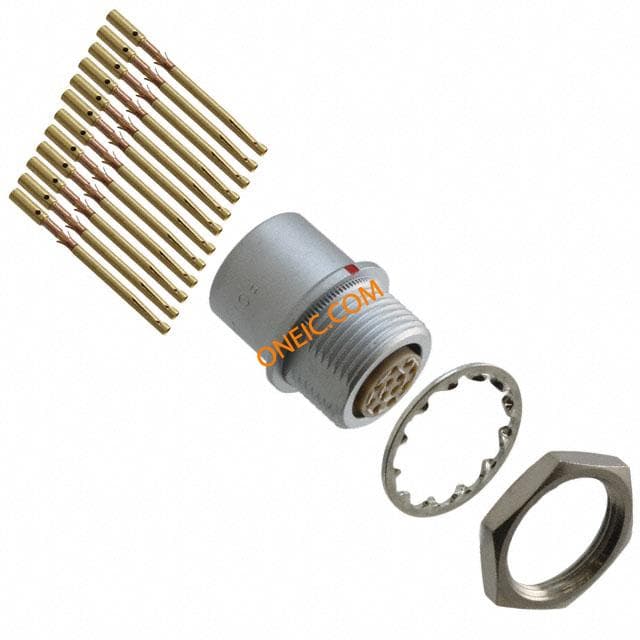

JBXED2G12FCSDSR
