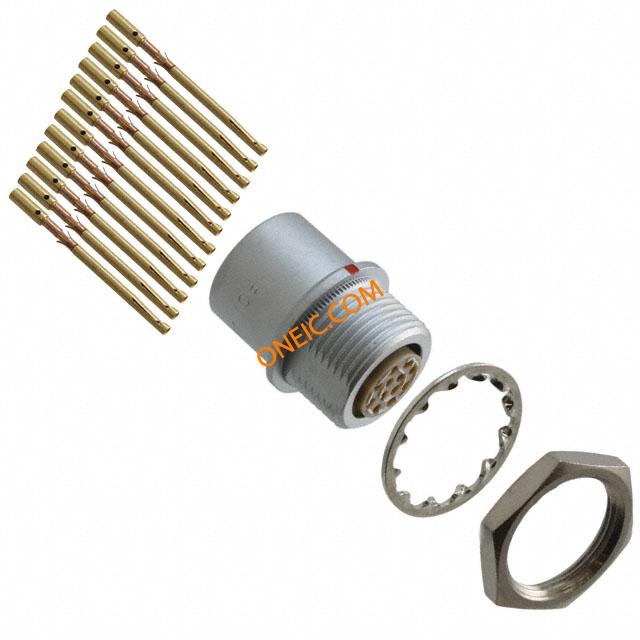

JBXED2G12FCSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 12P Socket Recept Crimp Shell Size 2 Conn Push-Pull SKT 12 POS Crimp ST Panel Mount 12 Terminal 1 Port Blister CONN RCPT PROTRUDING 12POS CRIMP Receptaclesize2,12cr |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1612 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | Yes | ||
Electrical
| Voltage Rating | 830VDC | Current Rating (Max) | 7A |
Mechanical
| Packaging | Blister | Cable Exit | No |
| Orientation | G | Shell Style | Receptacle |
| Termination | Crimp | Contact Form | 12Signal |
| Contact Type | 12Signal | Mounting Type | Panel Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Mounting Style | Panel | Contact Material | Copper Nickel |

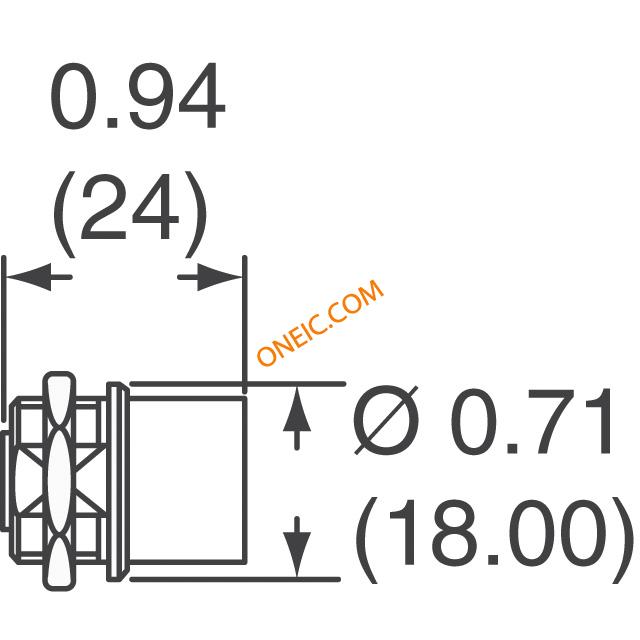

| Length - Overall | 24 mm | 1st Contact Gender | SKT |
| Number of Contacts | 12 | Number of Positions | 12 |
| Shell Size - Insert | 2 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | RF Family/Standard | JBX |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts
JBXFD2G12MSSDSMR
Souriau
Circular Push Pull Connectors 12P Strt Pin Plug Solder Shell Size 2 Conn Push-Pull M 12 POS Solder ST Cable Mount 12 Terminal 1 Port CONN PLUG 12POS STRAIGHT SOLDER JBXPLUGFD
$366.8736
Details

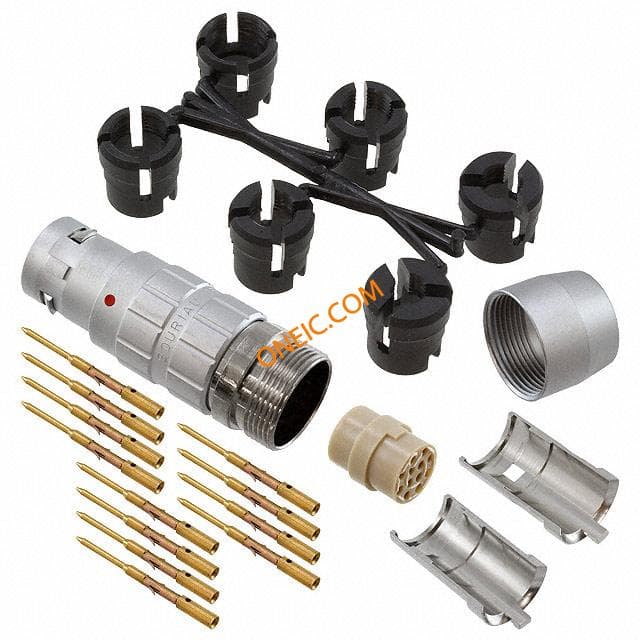

JBXFD2G12MCSDSR
