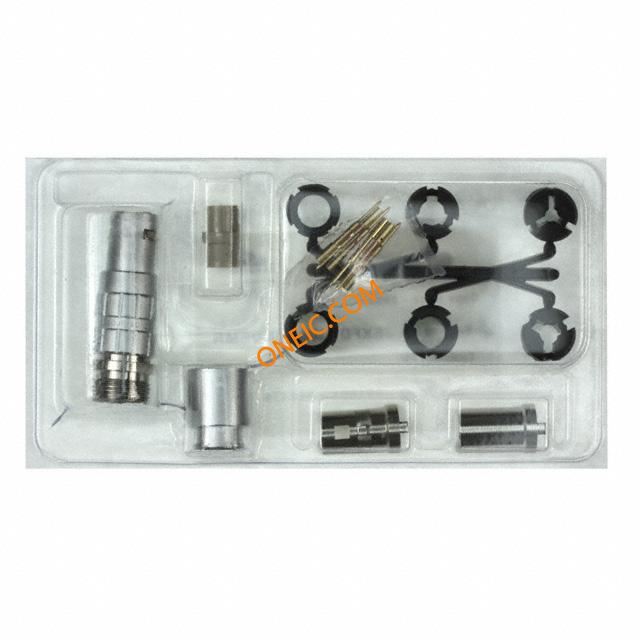

JBXFD1G06MCSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P Strt Pin Plug Crimp Shell Size 1 Conn Push-Pull M 6 POS Crimp ST Cable Mount 6 Terminal 1 Port CONN PLUG 6POS STRAIGHT CRIMP JBXPLUGFD |
| Category |
Business
| Tradename | JBX | Other Names | SOU1556 |
| Product Category | Circular Push Pull Connectors | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | Yes | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 7A |
Mechanical
| Diameter | 12 mm | Packaging | Bulk |
| Cable Exit | No | Shell Size | 1 |
| Wire Gauge | 22 | Orientation | G |
| Shell Style | Plug | Termination | Crimp |
| Contact Form | 6Signal | Contact Type | 6Signal |
| Mounting Type | Cable Mount | Shell Plating | Chrome Over Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold Over Nickel |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Shell Material | Hybrid | Contact Material | Brass |
| Length - Overall | 45 mm | Termination Style | Crimp |
| 1st Contact Gender | M | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 1 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | PL |
| Series | JBX | Features | Cable Clamp, Shielded |
| Product Type | Connectors | RF Family/Standard | JBX |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts
JBXEA1G06FQSDS
Souriau
Circular Push Pull Connectors 6P Socket Receptacle R/A PCB Tail Size 1 Conn Push-Pull F 6 POS Solder ST Panel Mount 6 Terminal 1 Port DBL NUT RCPT 6POS FEMALE RA PCB JBXRECPT
JBX1MPN
Souriau
Circular Push Pull Connectors JBX Protective Boot Shell Size 1, Black Connector Accessories Protective Boot Elastollan Black Shell Size 1 CONN BOOT PROTECTIVE SIZE 1 BLK CIRCULARPUSHPULLCONNECTOR,JBXBOOTBLACK

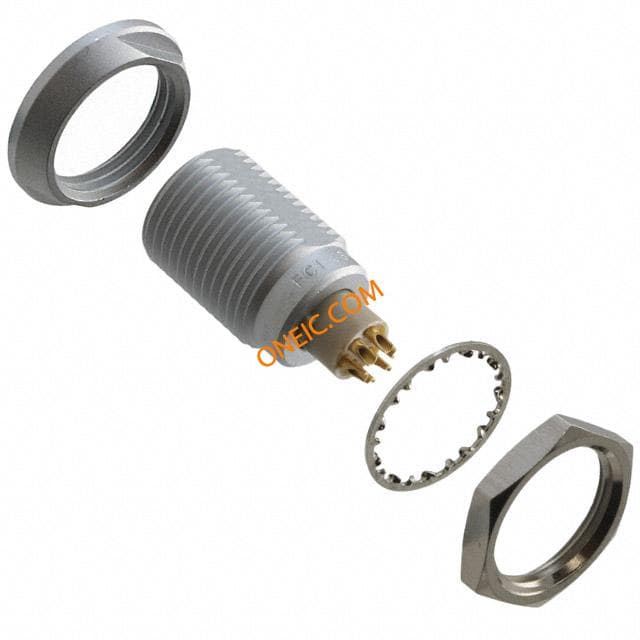

JBXEA1G06FSSDS
Souriau
Circular Push Pull Connectors 6P Socket Receptacle Solder Shell Size 1 Conn Push-Pull SKT 6 POS Solder ST Panel Mount 6 Terminal 1 Port Blister CONN RCPT 6POS DOUBLE NUT SOLDER JBXRECEPTACLEEA

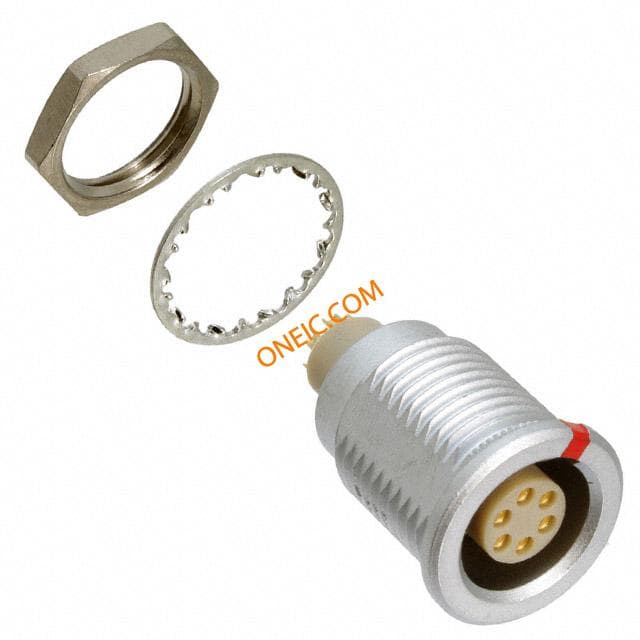

JBXER1G06FSSDSR
Souriau
Circular Push Pull Connectors 6P Socket Receptacle Solder Panel Mt Sz 1 CONN RCPT 6POS FRONT MNT SOLDER JBXrecept.1-06red

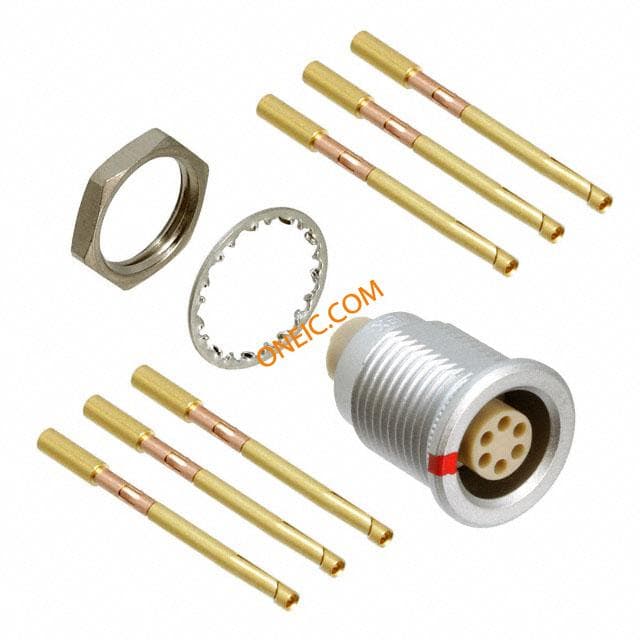

JBXER1G06FCSDSR
