点击放大查看

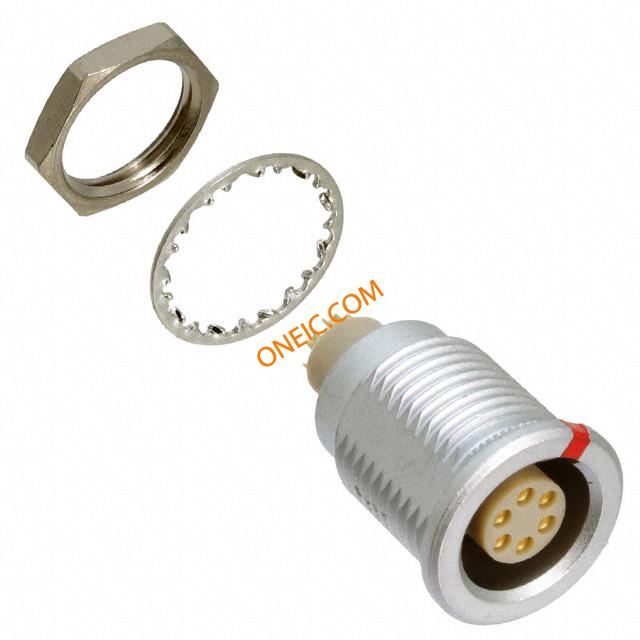

JBXER1G06FSSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P Socket Receptacle Solder Panel Mt Sz 1 CONN RCPT 6POS FRONT MNT SOLDER JBXrecept.1-06red |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1726 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 00000000 |
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 7A |
Mechanical
| Weight | 0 | Packaging | Bulk |
| Shell Size | 1 | Wire Gauge | 26 |
| Orientation | G | Shell Style | Receptacle |
| Termination | Solder Cup | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Chrome over Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Shell Material | Hybrid |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | 1 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
