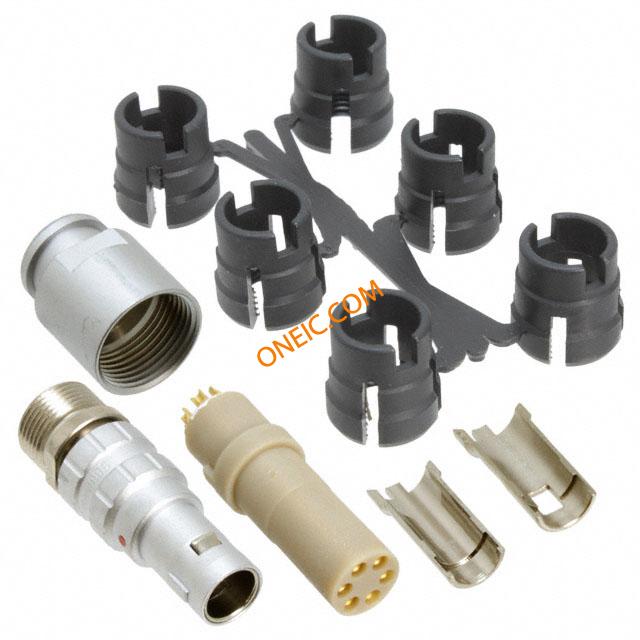

JBXFD1G06FSSDSMR
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P Strt Socket Plug Solder Shell Size 1 CONN PLUG 6POS STR CABLE SOLDER CIRCULARPUSHPULLCONNECTOR,PLUG,SHELL1,6P,SOLDER |
| Category |
Business
| Tradename | JBX | Other Names | SOU1698 |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 7A |
Mechanical
| Size | 1 | Packaging | Bulk |
| Orientation | G | Termination | Solder Cup |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | 1 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | CablePlug | Features | Cable Clamp, Shielded |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts

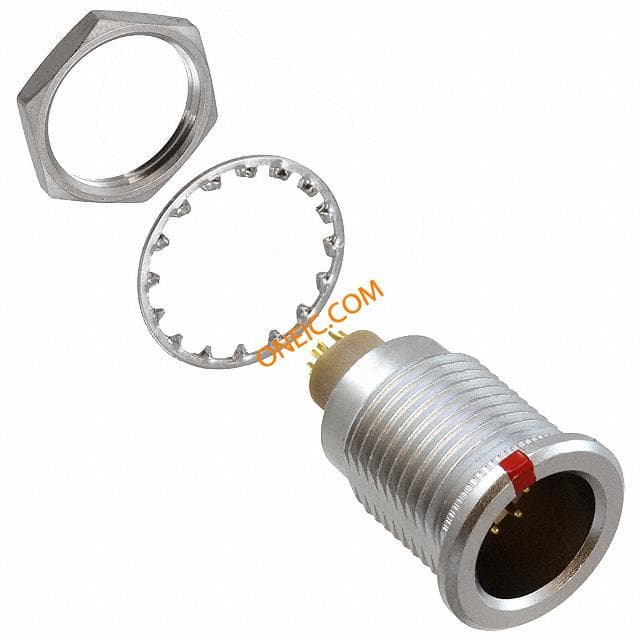

JBXER1G06MSSDSR
Souriau
Circular Push Pull Connectors 6P Sz 1 Front Mt Rec Solder Pin Cont CONN RCPT 6POS FRONT MNT SOLDER RCPTSZ16POSMALESOLDE
JBXEA1G06MCSDS
Souriau
Circular Push Pull Connectors 6P Pin Receptacle Crimp Shell Size 1 CONN RCPT 6POS DBL NUT PIN CRIMP JBXsize1,6-position
JBXED1G06MSSDPR
Souriau
Circular Push Pull Connectors 6P Pin Receptacle Solder Shell Size 1 CONN RCPT PROTRUDING 6POS PIN JBXPROTRUDINGW/MALE

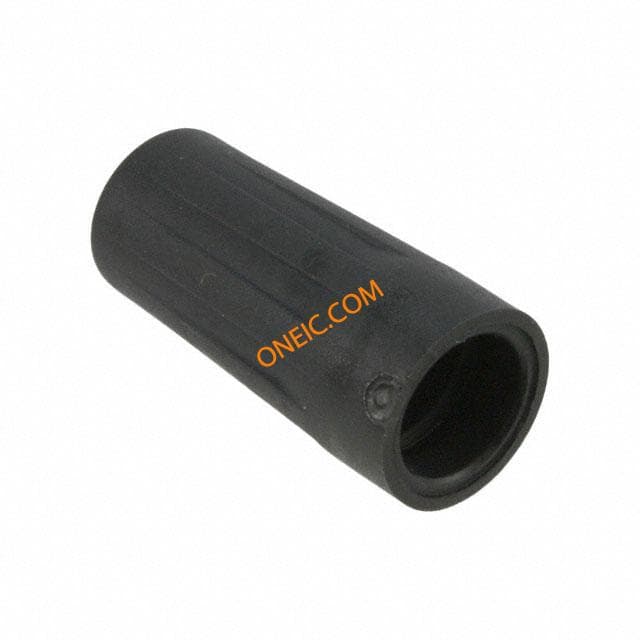

JBX1MPN
