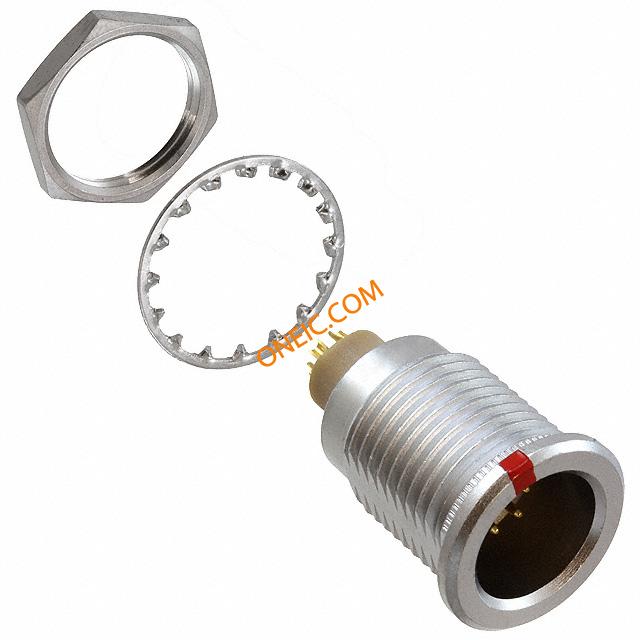

JBXER1G06MSSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P Sz 1 Front Mt Rec Solder Pin Cont CONN RCPT 6POS FRONT MNT SOLDER RCPTSZ16POSMALESOLDE |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1725 |
| Standard Package | 25 | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 660VDC | Current Rating (Max) | 7A |
Mechanical
| Packaging | Bulk | Orientation | G |
| Termination | Solder Cup | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Connector Type | Receptacle, Male Pins | Contact Finish | Gold |
| Fastening Type | Push-Pull | Number of Positions | 6 |
| Shell Size - Insert | 1 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Features | Shielded | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
PDF Document
