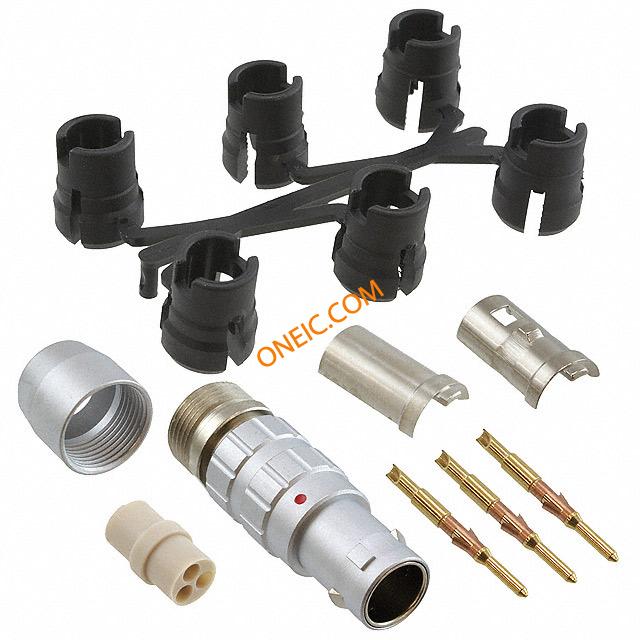

JBXFD1G03MSSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 3P Strt Pin Plug Solder Shell Size 1 CONN PLUG 3POS STR CABLE SOLDER CIRCLUARPUSHPULLCONNECTOR,PLUG,SHELL1,3P,SOLDER |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1694 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 600VDC | Current Rating (Max) | 12A |
Mechanical
| Size | 1 | Packaging | Bulk |
| Shell Size | 1 | Wire Gauge | 20 |
| Orientation | G | Shell Style | Plug |
| Termination | Solder Cup | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Chrome over Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Hybrid |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Size - Insert | 1 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | CablePlug | Series | JBX |
| Features | Cable Clamp, Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
