JBXER1G03FCSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 3P Socket Receptacle Crimp Panel Mnt Sz 1 CONN RCPT 3POS FRONT MNT CRIMP CIRCULARPUSHPULLCONNECTOR,RCPT,SHELL1,3P,SOLDER, |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1671 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 600VDC | Current Rating (Max) | 12A |
Mechanical
| Size | 1 | Packaging | Bulk |
| Shell Size | 1 | Orientation | G |
| Shell Style | Receptacle | Termination | Crimp |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Termination Style | Crimp | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Size - Insert | 1 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | PanelSocket | Series | JBX |
| Features | Shielded | Product Type | Connectors |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts
JBXFD1G03MSSDSMR
Souriau
Circular Push Pull Connectors 3P Strt Pin Plug Solder Shell Size 1 Conn Push-Pull M 3 POS Solder ST Cable Mount 3 Terminal 1 Port CONN PLUG 3POS STRAIGHT SOLDER JBXPLUGFD
$171.7612
Details

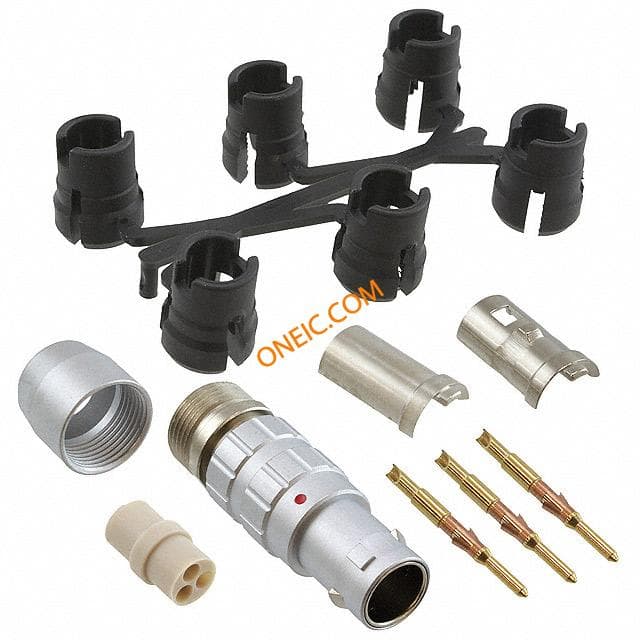

JBXFD1G03MSSDSR
Souriau
Circular Push Pull Connectors 3P Strt Pin Plug Solder Shell Size 1 CONN PLUG 3POS STR CABLE SOLDER CIRCLUARPUSHPULLCONNECTOR,PLUG,SHELL1,3P,SOLDER
$184.9226
Details

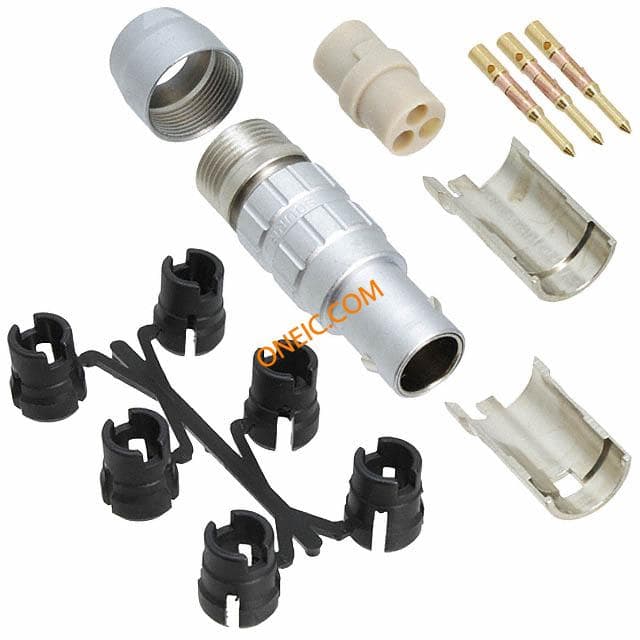

JBXFD1G03MCSDSR
