点击放大查看

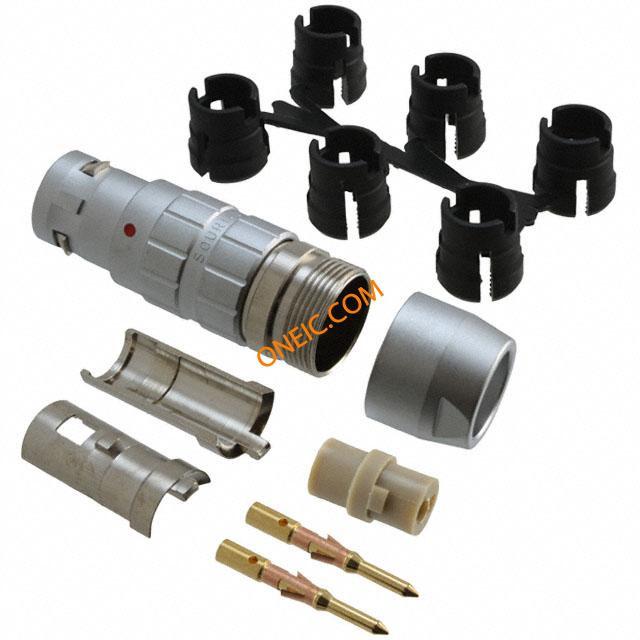

JBXFD1G02MCSDSR
| Manufacturer | |
| Description | Circular Push Pull Connectors 2P Strt Pin Plug Crimp Shell Size 1 CONN PLUG 2POS STR CABLE CRIMP CIRCLUARPUSHPULLCONNECTOR,PLUG,SHELL1,2P,CRIMP |
| Category |
Business
| Tradename | JBX | Other Names | SOU1720 |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 760VDC | Current Rating (Max) | 15A |
Mechanical
| Size | 1 | Packaging | Bulk |
| Orientation | G | Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Number of Contacts | 2 | Number of Positions | 2 |
| Shell Size - Insert | 1 | Shell Material, Finish | Brass, Chrome over Nickel |
| Contact Finish Thickness | 19.7µin (0.50µm) | ||
Product Info
| Type | CablePlug | Features | Cable Clamp, Shielded |
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
