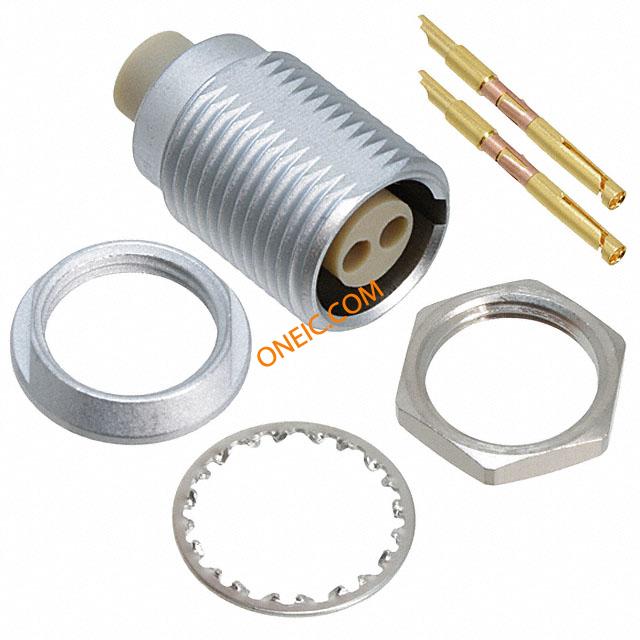

JBXEA1G02FSSDS
| Manufacturer | |
| Description | Circular Push Pull Connectors 2P Socket Receptacle Solder Shell Size 1 Conn Push-Pull SKT 2 POS Solder ST Panel Mount 2 Terminal 1 Port Blister CONN RCPT 2POS DOUBLE NUT SOLDER JBXRECEPTACLEEA |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | JBX | Other Names | SOU1592 |
| Product Category | Circular Push Pull Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 760VDC | Current Rating (Max) | 15A |
Mechanical

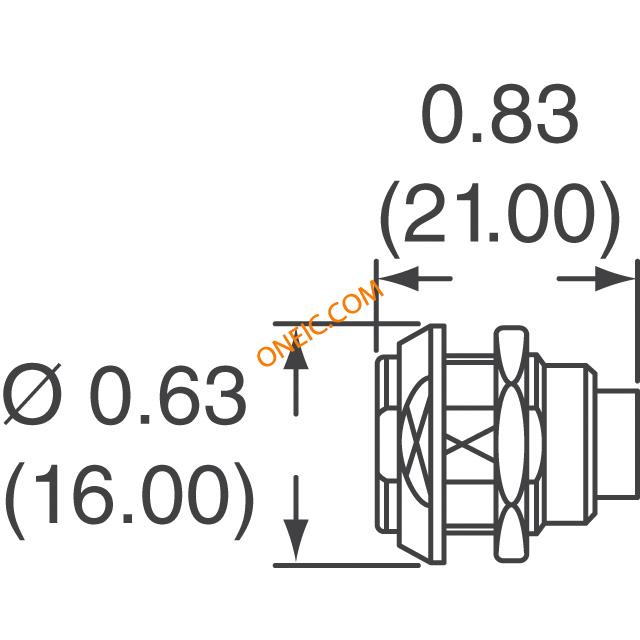

| Diameter | 16 | Packaging | Blister |
| Cable Exit | No | Orientation | G |
| Shell Style | Receptacle | Termination | Solder |
| Contact Type | 2Signal | Mounting Type | Panel Mount |
| Shell Plating | Chrome Over Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Pull |
| Contact Material | Copper Nickel | Length - Overall | 21 |
| 1st Contact Gender | SKT | Number of Contacts | 2 |
| Number of Positions | 2 | Shell Size - Insert | 1 |
| Shell Material, Finish | Brass, Chrome over Nickel | Contact Finish Thickness | 19.7µin (0.50µm) |
Product Info
| Type | Push-Pull | Gender | RCP |
| Series | JBX | Features | Shielded |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP40 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
Similar Parts
JBXFD1G02MSSDSR
Souriau
Circular Push Pull Connectors 2P Strt Pin Plug Solder Shell Size 1 CONN PLUG 2POS STR CABLE SOLDER JBXPLUGFD
$180.2646
Details
JBXFD1G02MSSDSMR
Souriau
Circular Push Pull Connectors 2P Strt Pin Plug Solder Shell Size 1 CONN PLUG 2POS STRGHT PIN SOLDER JBXPLUGFD
$162.7444
Details
JBX1RIN
Souriau
Circular Push Pull Connectors Insulating Washer JBX Size 1, Black INSULATING WASHER CONN WASHER SIZE 1 INSULATE BLK
$4.2772
Details
JBXFD1G02MCSDSMR
Souriau
Circular Push Pull Connectors 2P Strt Pin Plug Crimp Shell Size 1 Conn Push-Pull M 2 POS Crimp ST Cable Mount 2 Terminal 1 Port CONN PLUG 2POS STRAIGHT CRIMP JBXPLUGFD
$222.7136
Details

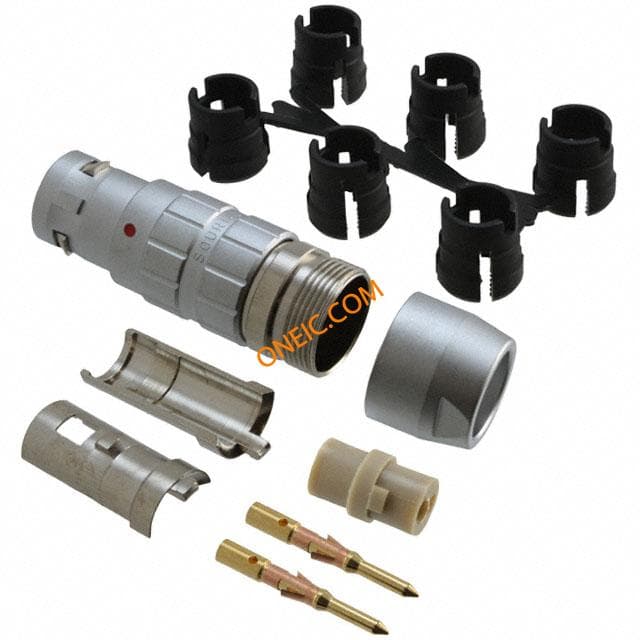

JBXFD1G02MCSDSR
