UT0W71210SH6
| Manufacturer | |
| Description | CONN SKT RCPT 10SKT CRIMP SOCKET HOUSING, JAM NUT, 10WAY CONN HSG RCPT 10POS JAM NUT SKT |
| Category |
Business
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage - Test | :1500V | Voltage Rating | :750V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.03256 | Packaging | Bulk |
| Orientation | N (Normal) | Contact Size | 20 |
| Contact Type | Crimp | Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Connector Type | :Circular Industrial | Fastening Type | Bayonet Lock |
| Insertion Angle | :12-10 | Material - Body | :Zinc |
| 1st Contact Gender | :Socket | Number of Positions | :10 |
| Shell Size - Insert | :12 | Shell Material, Finish | Zinc Alloy, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Note | Contacts Not Provided | Gender | :Socket |
| Series | * | Features | Shielded |
Environmental
| Mating Cycles | :500 | NEMA Frame Size | :IP67, IP68, IP69K |
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | :+105°C |
Documents & Media
Similar Parts
UT0W61210PH
Souriau
Standard Circular Connector 10P Strt Pin Plug Shell Size 12 CONN PLUG CABLE HD MALE 10POS PIN HOUSING, FREE, 10WAY connector,metalcircular,strplug,for10size20pincontact,ip68/ip69ksealing CONN HSG PLUG 10POS CABLE PIN Cable plug UT0W 10-pin Trim Trio UT0W 10P Male 12, UT0W61210PH, Souriau
SC20WL3TK6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 CONTACT, FEMALE, 22-20AWG, CRIMP CRIMP SOCKET, 20AWG
RC24W3K
Souriau Connection Technology
FEMALE MACHINED SEALOK UT0W Series Size 20 7.5A Female Circular Connector Contact, Crimp,Wire size 26 to 24AWG Pin & Socket Connectors Crimp Socket Contact 24-26 AWG CONTACT SOCKET, UT0W, 26-24AWG Female contact 0.13...0.25 mm² Female, RC24W3K, Souriau Souriau UT0W 系列 7.5A 母 压接端接 圆形 连接器 触芯, 使用于Trim Trio 连接器, 26 → 24 AWG 线规格

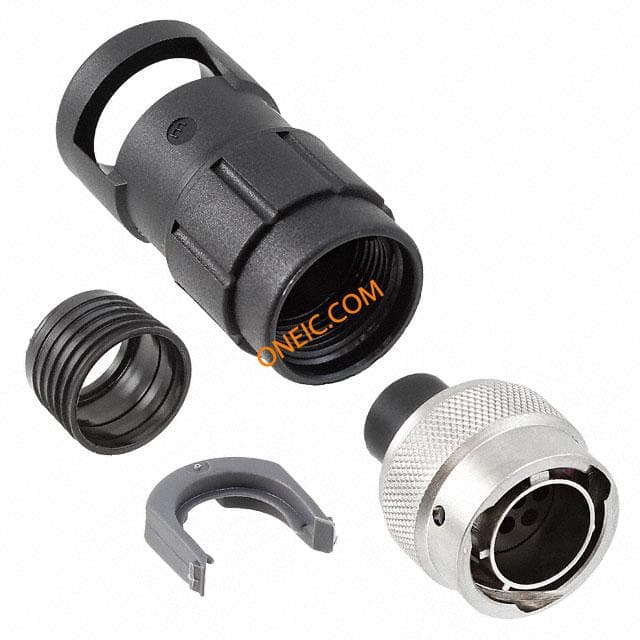

UT0W6FC1210PH
