点击放大查看
UT071412PH6
| Manufacturer | |
| Description | CONN SKT RCPT 12PIN CRIMP PIN HOUSING, JAM NUT, 12WAY CONN HSG RCPT 12POS JAM NUT PIN |
| Category |
Business
| Standard Package | 25 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage - Test | :2000V | Voltage Rating | :750V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.03817 | Packaging | Bulk |
| Orientation | N (Normal) | Contact Size | 16 |
| Contact Type | Crimp | Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Connector Type | :Circular Industrial | Fastening Type | Bayonet Lock |
| Insertion Angle | :14-12 | Material - Body | :Zinc Alloy |
| 1st Contact Gender | :Pin | Number of Positions | :12 |
| Shell Size - Insert | :14 | Shell Material, Finish | Zinc Alloy, Nickel Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Note | Contacts Not Provided | Gender | :Receptacle |
| Series | * | Features | Shielded |
Environmental
| Mating Cycles | :500 | NEMA Frame Size | :IP67, IP68, IP69K |
| Ingress Protection | IP68/69K - Dust Tight, Waterproof | Operating Temperature | :+105°C |
Documents & Media
Similar Parts
UT061412SH
Souriau
Standard Circular Connector 12P Strt Socket Plug Size 14 CONN PLUG CABLE 12POS FEMALE Conn Metal Circular SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port SOCKET HOUSING, FREE, 12WAY connector,metalcircular,strplug,for12size16socketcont,ip68/ip69ksealing Cable socket UT0 12-pin Trim Trio UT0 12P Female 14, UT061412SH, Souriau Souriau 12路 电缆安装 连接器 插头 ,母触芯, 外壳尺寸14
UT014DCG
Souriau
Standard Circular Connector Receptacle Dust Cap Shell Size 14 Connector Accessories Dust Cap CONN RCPT SEALING CAP SIZE 14 DUST CAP, METAL, SIZE 14 DustcapforreceptacleShell14IP68Metal Protective cap Trim Trio, size UTG/UT0, UT014DCG, Souriau
RMDXK10D28
Souriau
Standard Circular Contacts Trim Trio Pin Crimp Submin Coax Kit connector comp;size 16 pin contact kit;for coaxial and twisted pair cable CRIMP, MALE, COAXIAL

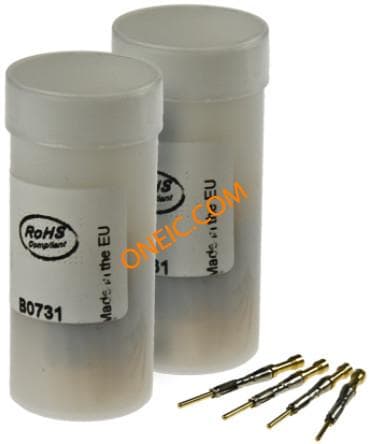

SM16ML11TK6
