点击放大查看
UT061412SH
| Manufacturer | |
| Description | Standard Circular Connector 12P Strt Socket Plug Size 14 CONN PLUG CABLE 12POS FEMALE Conn Metal Circular SKT 12 POS Crimp ST Cable Mount 12 Terminal 1 Port SOCKET HOUSING, FREE, 12WAY connector,metalcircular,strplug,for12size16socketcont,ip68/ip69ksealing Cable socket UT0 12-pin Trim Trio UT0 12P Female 14, UT061412SH, Souriau Souriau 12路 电缆安装 连接器 插头 ,母触芯, 外壳尺寸14 |
| Category |
Business
| Tradename | Trim Trio | Other Names | SOU1036 |
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage - Test | :2000V | Voltage Rating | 250 V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Weight | 0.02196 | Diameter | 29.3 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 14 | Orientation | N (Normal) |
| Termination | Crimp | Contact Form | 12Signal |
| Contact Size | 16 | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Plug for Female Contacts | Fastening Type | Bayonet Lock |
| Mounting Style | Cable | Shell Material | Zinc Alloy |
| Insertion Angle | 14-12 | Material - Body | :Zinc Alloy |
| Length - Overall | 33 mm | 1st Contact Gender | Without Socket Contacts |
| Number of Contacts | 12 | Number of Positions | 12 |
| Shell Size - Insert | 14-12 | Shell Material, Finish | Zinc, Nickel Plated |
| 1st Connector Mounting Type | :Cable | Shell Size - Insert (Convert To) | 14-12 |
Product Info
| Note | Contacts Not Provided | Type | Metal Circular |
| Gender | PL | Series | UT0 |
| Features | Shielded | Product Type | Cable Plugs |
| RF Family/Standard | UT0 | ||
Environmental
| Mating Cycles | :500 | NEMA Frame Size | :IP67, IP68, IP69K |
| Ingress Protection | IP 67 | Operating Temperature | -40C to 105C |
Documents & Media
Similar Parts
UT001412PH
Souriau
Standard Circular Connector 12P Pin Receptacle Wall Mount Size 14 CONN RCPT MALE 12POS WALL MNT connector;metal circular;wall recept;for 12 size 16 pin cont;ip68/ip69k sealing UTO01412PH male square flange receptacle, IP67 and 48h salt spray connector,metalcircular,wallrecept,for12size16pincont,ip68/ip69ksealing
UT014JCS
Souriau
Standard Circular Connector Short Cable Clamp IP68 Shell Size 14 CONN CABLE CLAMP METAL #14 IP68 HOOD, IP68, SIZE 14 StrainReliefcableclampAssyShell14IP68Metal Strain relief size 14 6...10 mm, UT014JCS, Souriau
UT071412PH
Souriau
Standard Circular Connector 12P Pin Receptacle Jam Nut Size 14 CONN RCPT MALE 12POS JAM NUT RECEPTACLE, MALE, SIZE14, 12WAY connector,metalcirc,jamnutrecept,for12size16pincont,ip68/ip69ksealing Souriau 12路 面板安装 连接器 插座 , 公触点, 外壳尺寸14

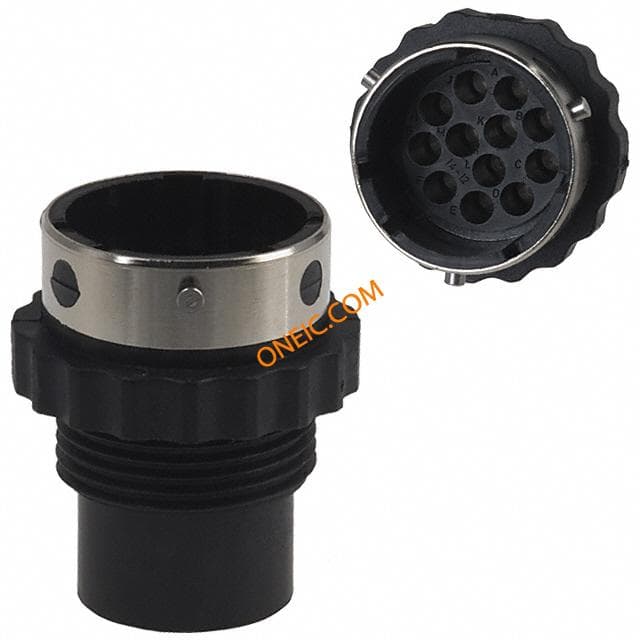

UTG114-12P
Souriau
Standard Circular Connector 12P Pin Receptacle Cable Mount Size 14 CONN RCPT CABLE MALES 12POS
RC16M23D28
Souriau
Standard Circular Contacts Crimp Socket Contact 16-20 AWG Contact SKT Crimp ST Cable Mount Bulk CONTACT SKT CRIMP 16-20AWG GOLD connector comp;size 16 machined crimp socket contact;for 20-16awg wire;gold plt Female #16 Machined crimp contact connectorcomp,size16machinedcrimpsocketcontact,for20-16awgwire,goldplt Contact;Socket;Machined;Sz16;Crimp;20-16AWG;TrimTrioRCSer;GoldPlate
SC16ML-1D70
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 CONTACT SKT CRIMP 16-18AWG GOLD connector component;stamped and formed crimp socket cont;size 16;18-16awg wire connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;GoldPlate
SC16M11S6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG GOLD CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP
SC20ML-1S6
Souriau
Standard Circular Contacts Trim Trio Socket 20 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 20-22AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,22-20awgwire Contact;Socket;Stamped;Sz16;Crimp;22-20AWG;TrimTrioSCSer;GoldFlashAll
SC16M1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 16-18AWG TIN CIRCULAR CONTACT, SKT, 18-16AWG, CRIMP Female #16 Stamped and formed crimp contact tapeandreelcontacts
SC16ML-1TK6
Souriau
Standard Circular Contacts Trim Trio Socket 16 AWG Contact Sz 16 Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 16-18AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 18 to 16AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,18-16awgwire Contact;Socket;Stamped;Sz16;Crimp;18-16AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 18 → 16 AWG 线规格
SC24M1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG TIN Pin & Socket Connectors Trim Trio Socket 24 AWG Contact Sz 16 CIRCULAR CONTACT, SKT, 26-24AWG, CRIMP tapeandreelcontacts
SC14M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 14AWG GOLD
SC20M-1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 20-22AWG TIN tapeandreelcontacts
SC14ML-1TK6
SOURIAU
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 14AWG TIN G-Bantamate, MBG, SMS Qikmate, Series Size 16 13A Female Circular Connector Contact, Crimp,Wire size 14AWG connectorcomponent,stampedandformedcrimpsocketcont,size16,for14awgwire Contact;Socket;Stamped;Sz16;Crimp;14AWG;TrimTrioSCSer;TinPlate Souriau 13A 母 压接端接 圆形 连接器 触芯, 14 AWG 线规格
SC24M-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Reel CONTACT SKT CRIMP 24-26AWG GOLD
SC14ML-1S6
SOURIAU
Contact SKT Crimp ST Cable Mount Loose Piece CONTACT SKT CRIMP 14AWG GOLD connectorcomponent,stampedandformedcrimpsocketcont,size16,for14awgwire Contact;Socket;Stamped;Sz16;Crimp;14AWG;TrimTrioSCSer;GoldFlashAll
SC16M-1S6
Souriau Connection Technology
CONTACT SKT CRIMP 16-18AWG GOLD
SC24M62TK6
Souriau Connection Technology
CONTACT SKT CRIMP 24-26AWG TIN

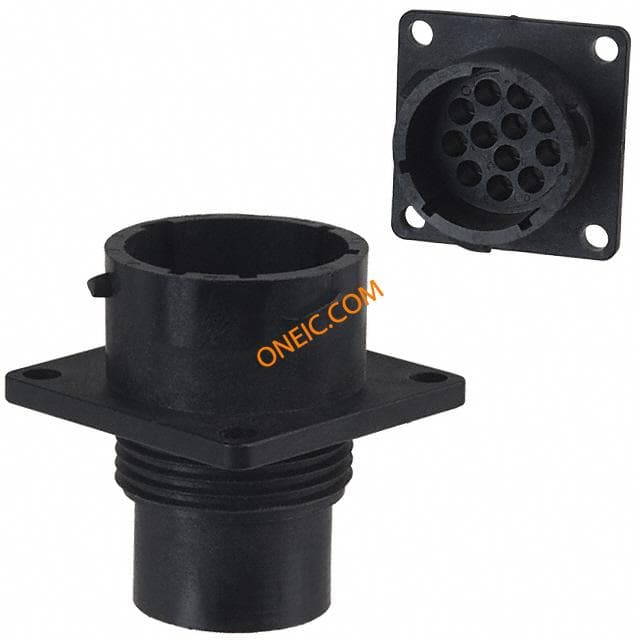

UTP01412P
