GLC75EG
| Manufacturer | |
| Description | AC/DC Power Supply Quad-OUT 5.1V/24V/-15V/15V 8A/2.5A/1A/2.5A 75W POWER SUPPLY SWITCHER 75W QUAD PowerSupply;AC-DC;5.1V@8A,15V@2.5A,24V@2.5A,-15V@1A;90-264VIn;OpenFrame;GLC |
| Category |
Business
| Lead Time | 112 Days | Subcategory | AC to DC Power Supply |
| Standard Package | Bulk | ||
Compliance
| RoHS | Vendor undefined / Vendor undefined | Approval Agency | CE, CSA, EN, IEC, UL |
Electrical
| Output | 5.1VDC@8A,15VDC@2.5A,24VDC@2.5A,-15VDC@1A | Frequency | 47 to 63 Hz |
| Operation | Switching | Efficiency | 78 % |
| Power - Max | 75 W | Power (Watts) | 75W |
| Power - Output | 75W | Voltage Rating | 90 to 264 V |
| Line Regulation | 2%; 10%, -5%; 3% | Load Regulation | 2%; 10%, -5%; 3% |
| Current - Output | 8|2.5|1|2.5 A | Number of Outputs | 4 |
| Power Supply Type | Switching (Open Frame) | Power (Watts) - Max | 75W |
| Current Rating (Max) | 2.3 A | Voltage - Input (Min) | 5.1V, ±15V, 24V |
Mechanical
| Mounting Type | Chassis Mount | Mounting Style | Panel |
| Primary Material | AC-DC | Size / Dimension | 7.00" L x 4.25" W x 1.30" H (177.8mm x 108.0mm x 33.0mm) |
Product Info
| Type | Switching | Features | 2-YearsWarranty |
| Applications | Commercial | Manufacturer | GLCSeries |
| Configuration | OpenFrame | For Use With/Related Products | GLC75E |
Environmental
| Operating Temperature | 0 to 50 °C | ||
Documents & Media
Similar Parts
1-640250-3
te connectivity / amp
Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 13POS W/RAMP SL-156 SL-156 Socket Housing + locking ramp 13P Headers & Wire Housings SL 156 HSG 13P Conn Housing RCP 13 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 13Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 13POS, 3.96MM CONNECTOR,SOFTSHELL,SL-156,RECEPTACLE,13POSITION,NYLON,WHITE TE Connectivity SL-156 系列 1 行 3.97mm 节距 13 路 直 母 电缆安装 压接连接器外壳 13P SL156 HSG W/LCK RAMP NATL
08-30466-1175
sl power electronics
L BRACKET ONLY
08-30466-2175
sl power electronics
COVER FOR GLC75-110 SERIES SPLY
640250-5
te connectivity / amp
Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 5 POS W/RAMP SL-156 5w housing without polarising tabs Headers & Wire Housings 5P HSG W/LCK RMP SL156 Conn Housing RCP 5 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 5Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector;Receptacle;5;Crimp;LockingRamp;180deg;Nylon;SL-156Housings Socket housing, straight 5P, 640250-5, TE Connectivity TE Connectivity SL-156 系列 3.96mm 节距 5 路 直 母 电缆安装 压接连接器外壳 05P SL156 HSG W/LCK RAMP NATL

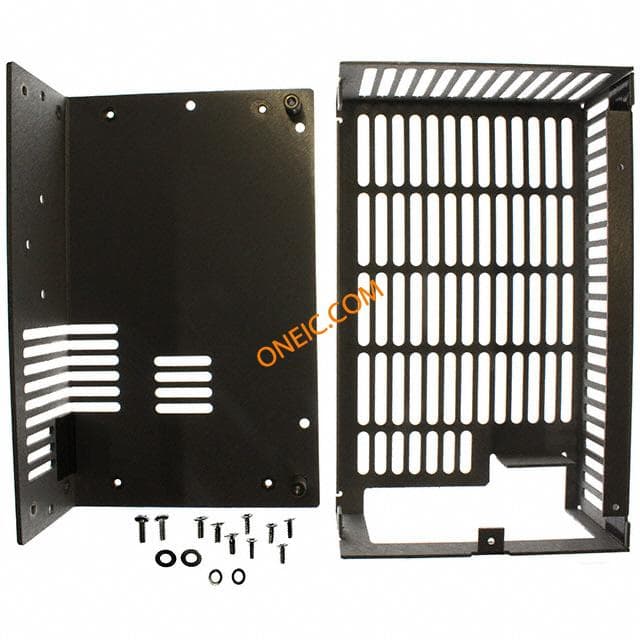

08-30466-2175G
