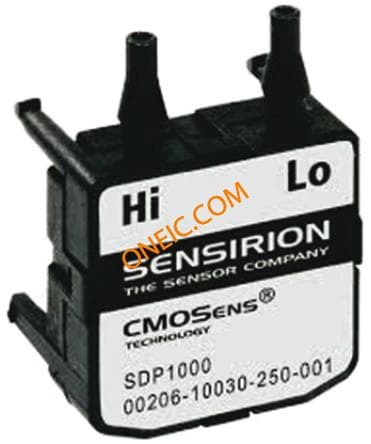

SDP1000-L
| Manufacturer | |
| Description | Differential For Air, Non-Aggressive Gas, 500Pa Max Pressure, 4.75 to 5.25V, IP20 PRESSURE TRANSDUCER, LIN, 500PA Sensor: pressure; Range: -1,2÷1,2Pa; Usup:5VDC Sensirion 分差 压力传感器 , 500Pa最大压力读数, 4.75 → 5.25 V, IP20 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 90268020 |
Electrical
| Accuracy | 0.2 %, 1.5 % | Impedance | :10kohm |
| Linearity | :1% | Output Type | Analogue |
| Sensor Type | :Voltage | Response Time | 40 ms |
| Voltage Rating | :5V | Current - Output | :3mA |
| Voltage - Output | 0.25 → 4 V | Voltage - Supply | 4.75 → 5.25 V |
| Current Rating (Max) | 5.2 mA | Current - Output (Typ) | :5mA |
| Voltage - Output (Max) | :0.257VDC | Voltage - Input Offset (Max) | :3.93VDC |
| Voltage - Output (Min/Fixed) | :0.243VDC | ||
Mechanical
| Depth | :18.3mm | Width | :30.0cm |
| Length | :44.0cm | Weight | 0.013 |
| Terminal Type | PCB | Pressure (PSI) | :500Pa |
| Pressure Range | -20Pa | Housing Material | PPS |
| Maximum Pressure | 500Pa | Rotational Life (Cycles Min) | :0.1% |
Product Info
| Port Style | :NPT | Measuring Range | -1,2...1,2Pa |
| Number of Units | 1 | Media Delivery Type | Air, Non-Aggressive Gas |
Environmental
| Seal Rating | IP20 | Pressure Type | Differential |
| Operating Pressure | :-20Pa | Operating Temperature | +60°C |
