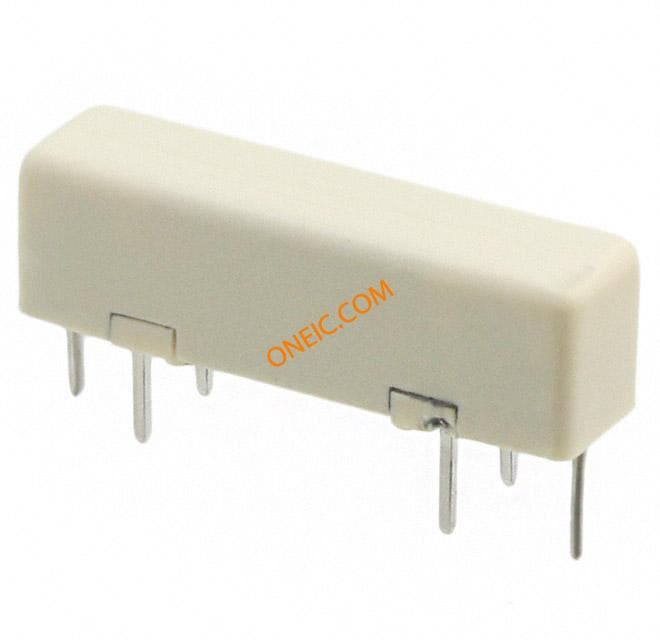

SAR92405
| Manufacturer | |
| Description | RELAY REED SPST 500MA 24V SPST-NO Reed Relay, 0.5A, 24V dc Reed Relays SPST-NO 0.5A 24VDC 1KOhm Thru-Hole RELAY, 5KV, 24V COIL ACCESSORY;EXTENSIONTUBE250MMSSG1/8 Relays Reed Relays Contact Configuration: 1A SPST-NO Mounting: PC Board Switching Current: 0.5 Amps Switching Voltage: 20 Volts |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 60 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85353010 | ||
Electrical
| Coil Type | Non Latching | Power - Max | 10 W |
| Coil Current | 24mA | Release Time | 0.5ms |
| Isolation Type | 5kV ac/dc | Coil Resistance | 1 kOhms |
| Voltage - Supply | 24VDC | Switching Voltage | 20VAC, 20VDC - Max |
| Contact Resistance | 30 mΩ | Vgs(th) (Max) @ Id | 3 VDC |
| Current - Switching | 0.5 A | Voltage - Switching DC | 20V dc |
| Vce(on) (Max) @ Vge, Ic | 20 VDC | Contact Rating (Current) | 500mA |
Mechanical
| Depth | 7.3mm | Width | :27.6mm |
| Height | 8.5mm | Length | 27.6mm |
| Weight | 0.003 | Packaging | Tray |
| Contact Form | SPST-NO (1 Form A) | Height (Max) | :8.5mm |
| Mounting Type | Through Hole | Terminal Type | Through Hole |
| Contact Material | Rhodium (Rh) | Termination Style | PC Pin |
| Contact Layout, Typical | SPST-NO | ||
Product Info
| Relay Type | Reed | ||
Environmental
| Operate Time | 1ms | Mechanical Life | 100000000 (Electrical) cycles |
| Operating Temperature | -20°C ~ 70°C | ||
