SKM150GAR12T4
| Manufacturer | |
| Description | SKM150GAR12T4, IGBT Module, N-channel, 232A 1200V, 5-Pin GAR IGBT, CHOPPER, MODULE, 150A, 1200V IGBTMOD.150A1200V Semikron N通道 IGBT 模块, 232 A 1200 V, 5针 SEMITRANS2封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85412900 | ||
Electrical
| Vgs (Max) | ±20V | Transistor Type | :NPN |
| Voltage - Supply | :1.8V | Voltage - Input (Min) | 1200 V |
| Vce(on) (Max) @ Vge, Ic | 1200 V | Current - Collector (Ic) (Max) | :232A |
| Current - Collector Cutoff (Max) | 232 A | ||
Mechanical
| Width | 34mm | Height | 30.1mm |
| Length | 94mm | Weight | 0.18 |
| Termination | :Screw | Mounting Type | Screw |
| Number of Pins | :11 | Package / Case | :SEMITRANS 2 |
| Package Cooled | GAR | Size / Dimension | 94 x 34 x 30.1mm |
| Number of Positions | 5 | ||
Product Info
| Mfr | 斯洛伐克 | Channel Type | N |
| Configuration | Single | Capacity (Pounds) | 0.16 千克 |
| Module/Board Type | :Chopper | ||
Environmental
| Operating Temperature | +175 °C | ||
Similar Parts

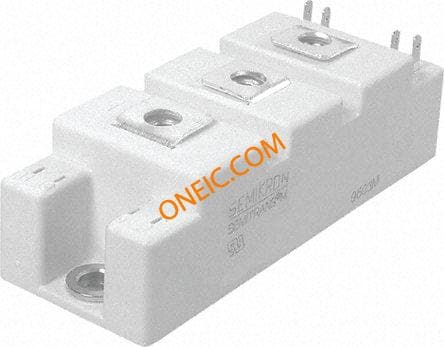

SKM150GB12T4
