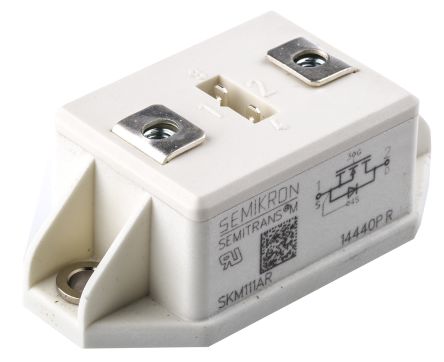

SKM111AR
| Manufacturer | |
| Description | SKM111AR, N-channel MOSFET Transistor 200A 100V, 4-Pin D 15 MOSFET, N-CH, 100V, 200A, D15 MOSFET, N, SEMITRANS SKM111AR Semikron , N沟道 MOSFET, 200 A, Vds=100 V, 4针 SEMITRANSM1封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85412900 | ||
Electrical
| Vgs (Max) | ±20 V | Transistor Type | :N Channel |
| Delay to 1st Tap | 270 ns | Number of Elements | 1 |
| Vgs(th) (Max) @ Id | :4V | Voltage - Breakdown | 100 V |
| Voltage - Threshold | :3V | Current Rating (Max) | :200A |
| Resistance - RDS(On) | :0.007ohm | Contact Voltage (Max) | :100V |
| Power Dissipation (Max) | :700W | On-State Resistance (Max) | 0.009 Ω |
| Voltage - Supply (Vcc/Vdd) | 100 V | Current - Peak Pulse (8/20us) | :600A |
| Switch Time (Ton, Toff) (Max) | 60 ns | Drain to Source Voltage (Vdss) | :100V |
| Current - Peak Pulse (10/1000us) | 200 A | Current - Drain (Idss) @ Vds (Vgs=0) | 200 A |
| Input Capacitance (Ciss) (Max) @ Vds | 10 pF V @ 25 | Current - Continuous Drain (Id) @ 25degC | :200A |
Mechanical
| Depth | :42mm | Width | 42mm |
| Height | 30mm | Length | 78mm |
| Weight | 0.27 | Mounting Type | Screw |
| Number of Pins | :4 | Package / Case | :SEMITRANS M1 |
| Package Cooled | D 15 | Material Finish | :- |
| Size / Dimension | 78 x 42 x 30mm | Number of Positions | 4 |
| Mounting Hole Diameter | :6.4mm | Mounting Panel Thickness | :65mm |
Product Info
| Mfr | 意大利 | Channel Type | N |
| Card Standard | Power MOSFET | Configuration | Single |
| Capacity (Pounds) | 0.15 千克 | ||
Environmental
| Temperature - Test | :25°C | Operating Temperature | +150 °C |
