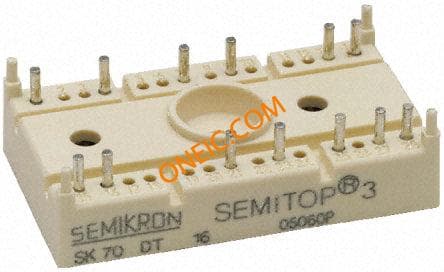

SK70DT16
| Manufacturer | |
| Description | SK70DT16, Thyristor Module SCR, 68A 1600V 10mA, 13-Pin T-15 THYRISTOR MODULE, 3PH THREEPHASESCRBRIDGERECTIFIER,1600V,SEMITOP3 Three phase bridge rectifier; 1.6kV; 68A; SEMITOP3 SCR 晶闸管模块, 68A 1600V 10mA, 13针 SEMITOP3封装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85359000 | ||
Electrical
| Current - Surge | 0.45kA | Transistor Type | three phase bridge rectifier |
| Current - Output | 10mA | Voltage - Supply | 1600V |
| Voltage - Isolation | :2500V | Voltage - Off State | 1.6kV |
| Current Rating (Max) | 68A | Vce(on) (Max) @ Vge, Ic | 1.9V |
| Current - Hold (Ih) (Max) | 150mA | Current - Off State (Max) | 10mA |
| Current - Timekeeping (Max) | 1000A2s | Voltage - Peak Reverse (Max) | 1600V |
| Current - Peak Pulse (10/1000us) | 68A | Voltage - Reverse Standoff (Typ) | :1600V |
| Voltage - Forward (Vf) (Max) @ If | 1600V | Current - Gate Trigger (Igt) (Max) | 100mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2V | Current - On State (It (RMS)) (Max) | :68A |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | :450A | Voltage - Output Difference (Typ) @ Distance | :1600V |
Mechanical
| Size | 3 | Depth | :31mm |
| Width | 31mm | Height | 15.43mm |
| Length | 55mm | Weight | 0.13 |
| Mounting Type | Screw | Package / Case | T15 |
| Package Cooled | T-15 | Material Finish | :- |
| Package Quantity | 10 | Primary Material | BridgeRectifier |
| Size / Dimension | 55 x 31 x 15.43mm | Number of Positions | 13 |
| Mounting Hole Diameter | :4.4mm | ||
Product Info
| Spg | 10 | Triac Type | SCR Module |
| Configuration | Three-Phase | Number of Units | 1 |
Environmental
| Operating Temperature | +125 °C | Operating Temperature - Junction | +125°C |
