KP01.1152.11
| Manufacturer | |
| Description | Power Entry Module Unfiltered M 3 POS 250VAC 10A Switch RA 1 Port KP01.1152.11.BF POWER MODULE MOD PWR INLET W/SW PCB 1.5-2 PNL Module; Pwr Entry;AC Inlet with Line Switch;Screw-On Mt;250VAC;Rocker AC Power Entry Modules SCREW-ON PCB 2-POLE INLET, IEC, KP01 Module,PwrEntry;ACInletwithLineSwitch;Screw-OnMt;250VAC;Rocker |
| Category |
Business
| MOQ | 1 | Product | Inlets |
| Lead Time | 56 Days | Unit Pack | 50 |
| Subcategory | Power Entry Module | Product Category | AC Power Entry Modules |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Automotive | NO |
| Leadfree Defin | RoHS-conform | Approval Agency | :CCC |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V |
| Number of Poles | 2 | Switch Function | Switched |
| Dielectric Strength | >2.3kVAC(L-N),>2.8kVAC(L/N-PE)kVAC | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 250 Vac | ||
Mechanical
| Width | :56.1mm | Weight | 1 oz |
| AC Outlets | :1 | Termination | Solder |
| Mounting Type | Through Hole | Connector Type | IEC/EN 60320-1/C14 |
| Mounting Style | Screw | Connector Style | IEC 320-C14 |
| Fuseholder Type | Fuse Not Required | Panel Thickness | 2mm |
| Housing Material | Thermoplastic | Termination Style | Solder |
| Height Above Board | :36.0mm | Number of Contacts | 3 |
| Contact Termination | :Quick Connect | Number of Positions | 3 |
| Panel Cutout Dimensions | :31.2mm | Material - Housing & Prism | :Thermoplastic UL94V-0 |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Type | Unfiltered | Fused | No |
| Gender | :Plug | Series | KP |
| Features | Cover, Switch On/Off Non Illuminated | Matchcode | KP01 |
| Firmware Version | CLASS I | Standard Leadtime | 6 weeks |
Environmental
| NEMA Frame Size | :IP40 | Operating Temperature | - 25 C to + 70 C |
Documents & Media
Similar Parts
KPF0.1
schurter
Power Entry Module Filtered F 3 POS 250VAC 10A RA 1 Port KPF NETZFILTER 10A MOD FILTER LINE BACKPACK STD 10A AC Power Line Filters KPF MAIN FILTER 10A KPFMAINFILTER10A
KPF4.1
schurter
Power Entry Module Filtered F/M 3/3 POS 250VAC 4A RA 1 Port Power Line Filters KPF MAIN FILTER 4A KPF NETZFILTER 4A MOD FILTER LINE BACKPACK STD 4A AC Power Line Filters KPF MAIN FILTER 4A KPFMAINFILTER4A
KPF4.3
schurter
Power Entry Module Filtered F/M 3/3 POS 250VAC 4A RA 2 Port MOD FILTER LINE BACKPACK MED 4A AC Power Line Filters KPF MAIN FILTER 4A MEDIC KPFMAINFILTER4AMEDIC
KPF6.3
schurter
Power Entry Module Filtered F 3/3 POS 250VAC 6A RA 1 Port KPF NETZFILTER 6A MEDIC MOD FILTER LINE BACKPACK MED 6A Power Line Filters KPF MAIN FILTER 6A MEDIC KPFMAINFILTER6AMEDIC
KPF1.3
schurter
Power Entry Module Filtered F/M 3/3 POS 250VAC 1A RA 2 Port MOD FILTER LINE BACKPACK MED 1A Power Line Filters KPF MAIN FILTER 1A MEDIC KPFMAINFILTER1AMEDIC
KPF6.1
schurter
Power Entry Module Filtered F 3/3 POS 250VAC 6A RA 1 Port KPF NETZFILTER 6A MOD FILTER LINE BACKPACK STD 6A AC Power Line Filters KPF MAIN FILTER 6A KPFMAINFILTER6A
KPF8.1
schurter
Power Entry Module Filtered F 3/3 POS 250VAC 8A RA 1 Port KPF NETZFILTER 8A MOD FILTER LINE BACKPACK STD 8A AC Power Entry Modules KPF MAIN FILTER 8A KPFMAINFILTER8A
KPS2.1
schurter
Power Entry Module Unfiltered M/F 3/3 POS 125VAC 10A ST 2 Port MOD SURGE PROTECTR BACKPACK 125V
KPF1.1
schurter
Power Entry Module Filtered F 3/3 POS 250VAC 1A RA 1 Port KPF NETZFILTER 1A MOD FILTER LINE BACKPACK STD 1A Power Line Filters KPF MAIN FILTER 1A KPFMAINFILTER1A
KPF0.3
schurter
Power Entry Module Filtered F/M 3/3 POS 250VAC 10A RA 2 Port MOD FILTER LINE BACKPACK MED 10A AC Power Line Filters KPF MAIN FILTER 10A MEDIC KPFMAINFILTER10AMEDIC
KPF8.3
schurter
Power Entry Module Filtered F/M 3/3 POS 250VAC 8A RA 2 Port MOD FILTER LINE BACKPACK MED 8A AC Power Entry Modules KPF MAIN FILTER 8A MEDIC KPFMAINFILTER8AMEDIC
KPS1.1
schurter
Power Entry Module Unfiltered M/F 3/3 POS 125VAC 10A ST 2 Port MOD SURGE PROTECTR BACKPACK 250V
KPF2.1
schurter
Power Entry Module Filtered F 3/3 POS 250VAC 2A RA 1 Port MOD FILTER LINE BACKPACK STD 2A AC Power Line Filters KPF MAIN FILTER 2A KPFMAINFILTER2A
KPF2.3
schurter
Power Entry Module Filtered F/M 3/3 POS 250VAC 2A RA 2 Port MOD FILTER LINE BACKPACK MED 2A AC Power Line Filters KPF MAIN FILTER 2A MEDIC KPFMAINFILTER2AMEDIC

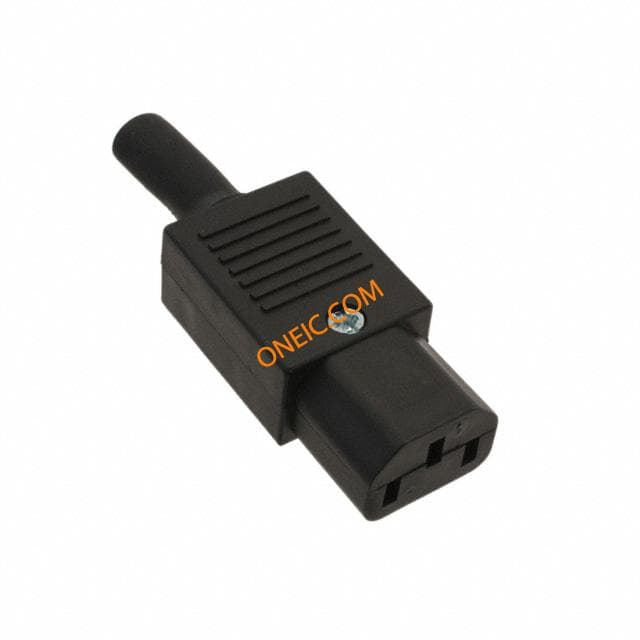

PX0587
