PX0587
| Manufacturer | |
| Description | CONN AC PLUG STR FEMALE C13 Female Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Black rewireable straight skt,10A 240Vac AC Power Entry Modules AC POWER SOCKET Conn Power F 3 POS Screw ST Cable Mount 3 Terminal 1 Port SOCKET, IEC, FREE, 10A Blackrewireablestraightskt,10A240Vac Connector: IEC 60320,AC mains; C13 (F); plug; female; for cable Cable device socket C13 black, PX0587, Bulgin Bulgin C13 电缆安装 直向 插座 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流 |
| Category |
Business
| Product | Inlets | Other Names | 708-1342 |
| Product Category | AC Power Entry Modules | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :BS, CSA, EN 60320, IMQ, SEMKO, UL, VDE | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 10A | Voltage | 250V |
| Filter Type | No | Voltage Rating | 250 V ac |
| Switch Function | Not Switched | Current Rating (Max) | 10A |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | C13 (F) |
Mechanical
| Depth | 79 mm | Width | :26.4mm |
| Height | 18.4 mm | Length | :18.4mm |
| Weight | 0.006 | AC Outlets | :1 |
| Orientation | straight | Termination | Screw Down |
| Body Material | polyamide | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug, Female Sockets | Mounting Style | Cable |
| Connector Style | IEC 320-C13 | Fuseholder Type | Drawer Not Required |
| Contact Material | Brass | Housing Material | Nylon |
| Length - Overall | 26.4 mm | Package Quantity | 200 |
| Connector - Cable | C13 | Termination Style | Screw |
| Color - Connectors | :Black | Number of Contacts | 3 POS |
| Contact Termination | :Screw | Number of Positions | 3 |
| Material - Housing & Prism | :Nylon | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 200 | Type | Power |
| Fused | No | Gender | Female |
| Series | :- | Number of Ports | 1 Port |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | - 40 C to + 70 C | Operating Temperature - Junction | 70C |
Documents & Media
Similar Parts

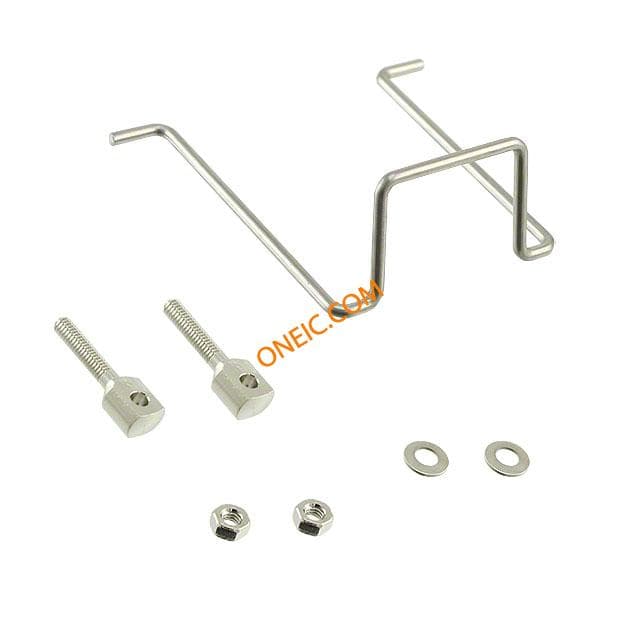

KT0012
Bulgin
Cable Mounting & Accessories RETAINER CLIP ASMBL CLIP RETAINER FOR POWER PLUG Connector Accessories Retaining Clip Stainless Steel RETAINING CLIP, C19/C20 Spring clip; Application: PX0596,PX0599 Circlip, 49 mm, KT0012, Bulgin Bulgin IEC 连接器
KT0009
Bulgin
Cable Mounting & Accessories RETAINER CLIP ASMBL IEC RETAINING CLIP IEC connector retaining clamp kit,KT0009 Connector Accessories Retaining Clip Stainless Steel RETAINING CLIP, IEC CONN Spring clip; Application: PF0001,PF0030,PX0587 Bulgin 固定夹 固定夹
PX0575/15/28
Bulgin
CONN AC RECEPT 2.8MM SLD SNAP IN AC Power Entry Modules SNAP-IN 1.5MM PNL TB Conn Inlets M 3 POS Solder Lug ST Panel Mount 3 Terminal 1 Port INLET, IEC, SNAP-FIT

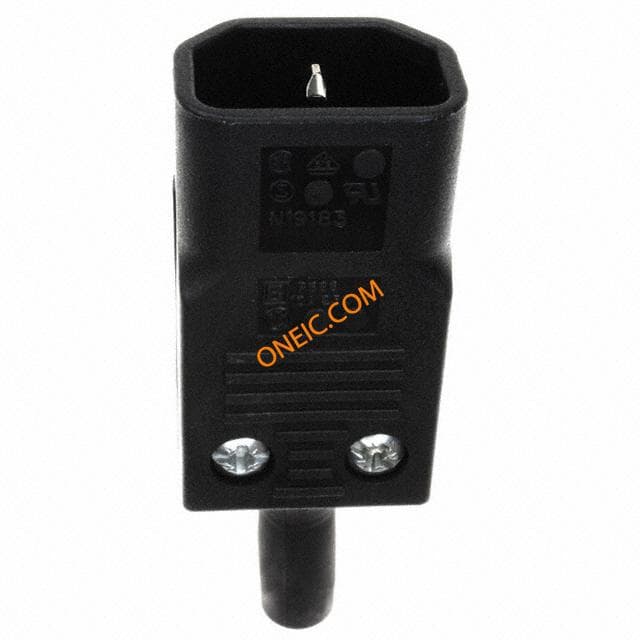

PX0686
Bulgin
CONN AC PLUG STR MALE C14 Male Straight Cable Mount IEC Connector, Screw Down Termination, Rated At 10A, 250V ac Blk re-wireable straight plug,10A 250Vac AC Power Entry Modules AC POWER PLUG Conn Power M 3 POS Screw ST Cable Mount 3 Terminal 1 Port PLUG, IEC C14, STRAIGHT, FREE Blkre-wireablestraightplug,10A250Vac Connector: IEC 60320,AC mains; C14 (E); plug; male; Mat: polyamide Cable device plug, C14 black, PX0686, Bulgin Bulgin C14 电缆安装 直向 插头 IEC 插头, 螺钉拧紧端接, 额定10A, 250 V 交流

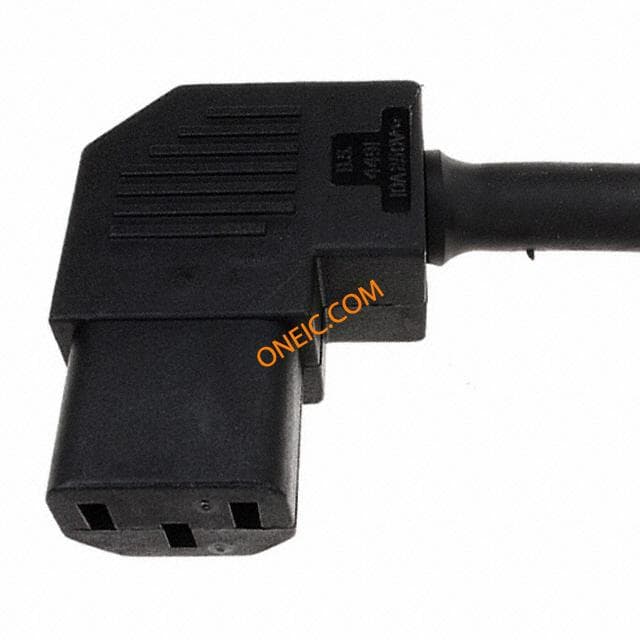

PX0587/SE
