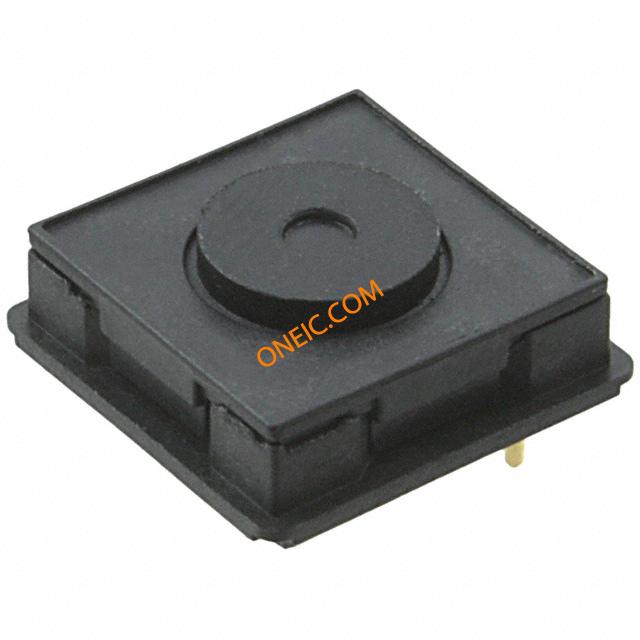

1241.1002
| Manufacturer | |
| Description | Switch Tactile N.O. SPST Button PC Pins 0.125A 48VDC >1000000Cycle 2.5N Thru-Hole SWITCH TACTILE SPST-NO 0.05A 24V SWITCH, TACT, SHORT ACT MTG1/2"AUFLATACTUATOR |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Lead Time | 63 Days |
| Unit Pack | 100 | Subcategory | Switch Tactile |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365011 | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 48 V |
| Switch Function | Off-Mom | Current Rating (Max) | 0.125 A |
| Current - Max/Contact | :50mA | Switch Function/Rating | N.O. |
| Contact Rating @ Voltage | 0.05A @ 24VDC | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :24V | ||
Mechanical
| Weight | 0.0006 | Outline | 12.65mm x 12.65mm |
| Packaging | Bulk | Actuator Type | Standard |
| Mounting Type | Through Hole | Switch Travel | 0.45mm |
| Terminal Type | PC Pins | Operating Force | 2.5 N |
| Contact Material | Gold | Actuator Material | Polycarbonate (PC) |
| Termination Style | PC Pin | Actuator Orientation | Top Actuated |
| Switch Actuation Level | SPST | Contact Layout, Typical | :SPST-NO |
| Actuator Height off PCB, Vertical | 4.40mm | ||
Product Info
| Series | :MTG | Features | Tactile Feedback |
| Illumination | Non-Illuminated | ||
Environmental
| Mechanical Life | >1000000 Cycles | Ingress Protection | IP40 |
| Operating Temperature | -25 to 85 °C | ||
