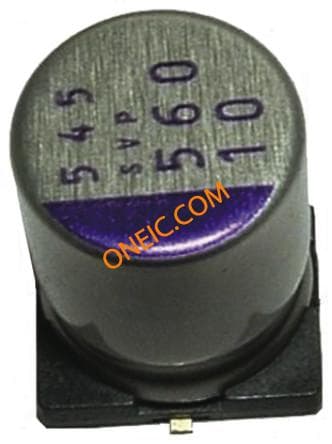

16SVP100M
| Manufacturer | |
| Description | Sanyo 100μF ±20% 0.035Ω 16V dc SMD Aluminium Electrolytic Capacitor CAPACITOR, 100UF, 16V OSCONCAP100UF,16V |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | Tariff No | 85322200 |
Electrical
| Voltage | 16 V dc | Tolerance | ±20% |
| Capacitance | 100µF | Range deg/s | :SANYO - SVP Series |
| Voltage Rating | :16V | Current - Leakage | 320 μA |
| Capacitance - Input | :Radial Can - SMD | Resistance Tolerance | -20% |
| Ripple Current @ Low Frequency | :2670mA | Ripple Current @ High Frequency | 2670mA |
| ESR (Equivalent Series Resistance) | 0.035Ω | ||
Mechanical
| Depth | :10.3mm | Width | :10.3mm |
| Height | 7.9mm | Length | :7.9mm |
| Weight | 0.008 | Diameter | 10mm |
| Packaging | :Cut Tape | Construction | Cylindrical |
| Mounting Type | Surface Mount | Size / Dimension | 10 Dia. x 7.9mm |
Product Info
| Series | :SVP | Electrical Life | 2000h |
Environmental
| Rated Life | :2000 hours @ 105°C | Operating Temperature | +105°C |
