TSM-104-01-S-SV-P
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD Tube CONN HEADER 4POS .100" SNGL SMD |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 7 | Voltage - Input (Min) | 475VAC |
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 9.65 |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Surface Mount | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 10.16 | Number of Contacts | 4 |
| Number of Positions | 4 | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
BCS-104-L-S-TE
samtec inc.
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT 4POS .100" SNGL VERT Samtec BCS Series 2.54mm 4 Way 1 Row Straight PCB Socket Through Hole Board to Board RECEPTACLE, 2.54MM, VERT, 4WAY Samtec BCS 系列 4路 直 2.54mm节距 通孔 印刷电路板插座, 板对板
ESQ-104-12-T-S
samtec inc.
Conn Elevated Socket SKT 4 POS 2.54mm Solder ST Thru-Hole Tube CONN RCPT 4POS .100" TIN SOCKET, 2.54MM, VERTICAL THT, 4WAY
SSQ-104-01-S-S
samtec inc.
Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole CONN RCPT .100" 4POS SNGL GOLD
SSQ-104-02-T-S-RA
samtec inc.
Conn Socket Strip SKT 4 POS 2.54mm Solder RA Thru-Hole CONN RCPT .100" 4POS SGL R/A TIN

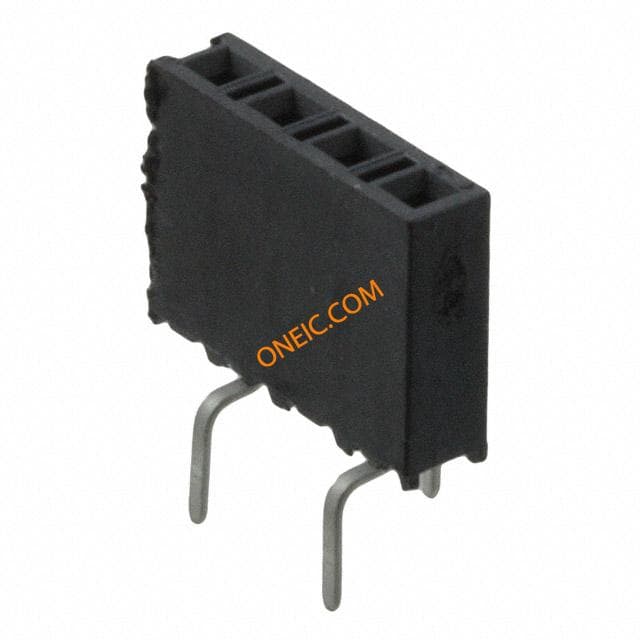

BCS-104-L-S-PE
