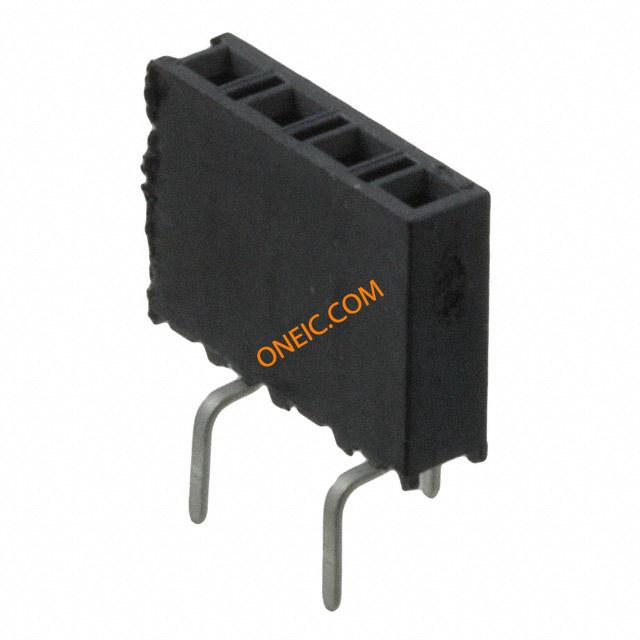

BCS-104-L-S-PE
| Manufacturer | |
| Description | Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT 4POS .100" SNGL VERT SOCKET, 2.54MM, PASS-THRU, 1X4WAY |
| Category |
Business
| Lead Time | 30 Days | Other Names | SAM1010-04 |
| Subcategory | Not Specified | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | 10 | Current Rating (Max) | 5.9 |
| Voltage - Input (Min) | 475VAC | ||
Mechanical
| Color | Black | Depth | 5.08 |
| Pitch | 2.54 mm | Height | 7.44 |
| Weight | 0.002 | Packaging | Bulk |
| Termination | Solder | Lead Spacing | :2.54mm |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Receptacle, Pass Through | Contact Finish | Gold Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Liquid Crystal Polymer | Length - Overall | 10.16 |
| Height Above Board | 0.290" (7.37mm) | Number of Contacts | 4 |
| Contact Termination | :Solder | Number of Positions | 4 |
| Contact Finish Thickness | 10µin (0.25µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | :- | Number of Positions Loaded | All |
