SL-110-T-10
| Manufacturer | |
| Description | Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole Conn Socket Strip SKT 10 POS 2.54mm Solder ST Thru-Hole Bulk CONN RCPT .100" 10POS GOLD PCB Receptacle 2.54mm PCB low profile 10way RECEPTACLE, 2.54MM, PCB, 10WAY Samtec SL 系列 10路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | SAM1105-10 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Contact Resistance | :10mohm | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Depth | 2.54 |
| Pitch | 0.100" (2.54mm) | Height | 3.1 |
| Length | :3.1mm | Weight | 0.001 |
| Packaging | Bulk | Termination | Solder |
| Lead Spacing | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 1 |
| Contact Material | Beryllium Copper | Housing Material | Polyester |
| Length - Overall | 25.4 | Color - Connectors | :Black |
| Height Above Board | 0.122" (3.10mm) | Number of Contacts | 10 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 10 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Series | SL | Number of Positions Loaded | All |
Environmental
| Operating Temperature | :125°C | ||
Documents & Media
Similar Parts

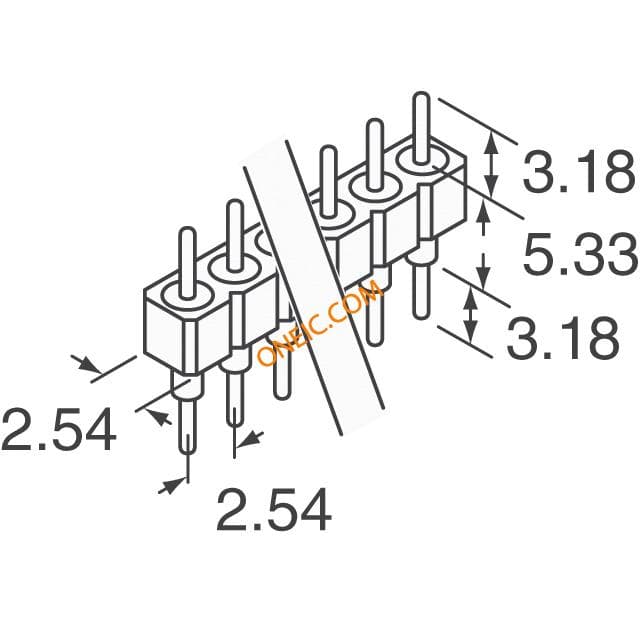

BBS-110-G-A
