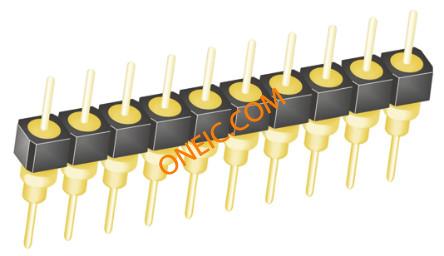

BBS-110-G-A

Manufacturer	Samtec, Inc.
Description	Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADR 10POS .100 PCB GOLD Samtec BBS Series 2.54mm Pitch 10 Way 1 Row Straight PCB Header, Through Hole Termination, 1A HEADER, 2.54MM, PCB, 10WAY
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Lead Time	30 Days	Other Names	SAM1004-10
Subcategory	Not Specified	Standard Package	Bulk

Compliance

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
EU RoHS	Compliant	Tariff No	85369010

Electrical

Current Rating (Max)

Mechanical

Color	Black	Depth	2.54
Pitch	0.100" (2.54mm)	Height	8.51
Length	:5.33mm	Weight	0.001
Material	:Glas Filled Polyester	Packaging	Tube
Termination	Solder	Lead Spacing	:2.54mm
Housing Color	Black	Mounting Type	Through Hole
Connector Type	Unshrouded	Contact Finish	Gold Over Nickel
Number of Rows	1	Height (Inches)	0.210" (5.33mm)
Contact Material	Phosphor Bronze\|Brass	Housing Material	Polyester
Length - Overall	25.4	Color - Connectors	:Black
Number of Contacts	10	Contact Termination	:Solder
Number of Positions	10	Contact Length - Mating	0.125" (3.18mm)
Contact Finish Thickness	20µin (0.51µm)

Product Info

Type	Unshrouded Header	Gender	HDR
Series	BBS	Number of Positions Loaded	All

Environmental

Operating Temperature

:+125°C

Documents & Media

PDF Document

B(BS,BL,HS,BD,DL) Spec

PDF Document

81193.pdf
